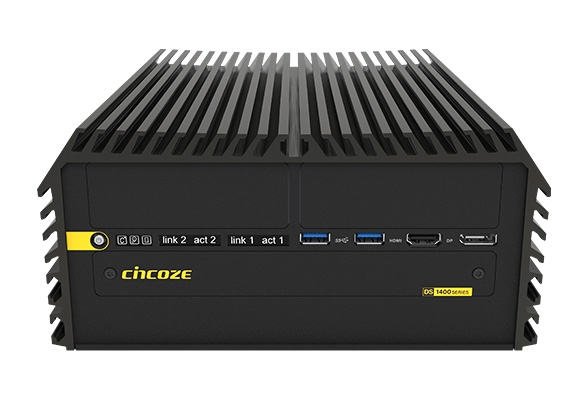

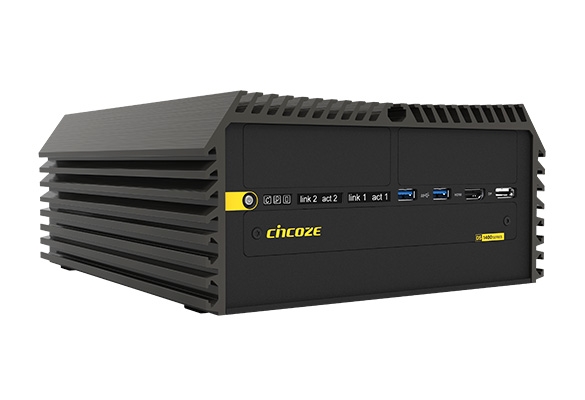

DS-1401
- Intel® 第 13/12 代 Raptor Lake-S/Alder Lake-S Core™ i9/i7/i5/i3 处理器（最大 65 W TDP）
- 2 个 DDR5 SO-DIMM 插槽，支持 ECC/非 ECC 类型内存，高达 4800MHz，64GB
- 2 个 GbE LAN 和可选的 2 个 10GbE LAN
- 2 个 2.5 英寸 SATA 存储、3 个 mSATA 插槽、1 个用于 NVMe SSD 的 M.2 key M
- 1 个 PCI/PCIe 扩展插槽
- 用于 I/O 扩展的可选 CMI 模块
- 用于点火感应和 PoE 的可选 CFM 模块
- 宽工作温度 -40°C 至 70°C
- MIL-STD-810G 军用标准和 EN50155（EN 50121-3-2 only）
- 安全标准：UL、cUL、CB、IEC、EN 62368-1
- 支持 Intel® OpenVINO™ 开发套件
- 通过 Intel® ESDQ（边缘软件设备质量认证）认证：Edge Insights for AMR 软件套装
DS-1401 是一款高效能、可扩展的强固型嵌入式电脑，除了强大的性能外，更拥有丰富的 I/O 接口和强大的功能性。为满足不同的应用需求，除了拥有 1x PCI/PCIe 扩展能力外，还可透过 Cincoze 专属的 CMI、CFM、MEC 模块，灵活地扩展所需的 I/O 和特定功能。此外，DS-1401 通过多项国际认证，确保在多样化的严苛环境中发挥稳定可靠的效能，是智能制造和轨道交通等应用的理想选择。
Product Category >>>> Rugged Embedded Fanless PC
强大的 运算效能
——
DS-1401 可搭载 Intel® 7 制程的第 13/12 代 Core™ i9/i7/i5/i3（Raptor Lake-S/Alder Lake-S）处理器，可拥有高达 24 核心（8P + 16E）及 32 线程的配置，处理效能是 Comet Lake-S 的 1.35 倍以上。此外，透过 Intel® Xe 架构的 UHD 770 显示芯片，在 GPU 图像分类推理效能则是 Comet Lake-S 的 2.8 倍，非常适用于 AI 和多种边缘运算应用，展现强大的处理效能。
I/O 接口与
模块化扩展
——

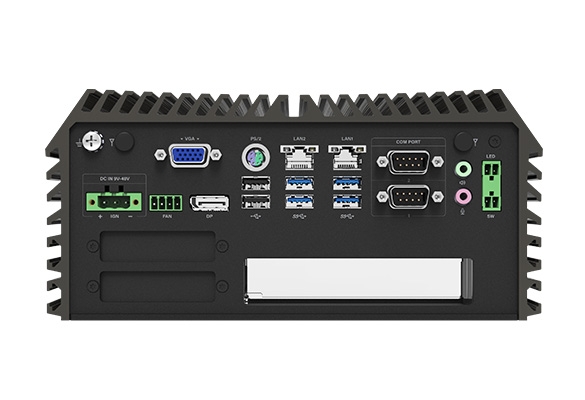

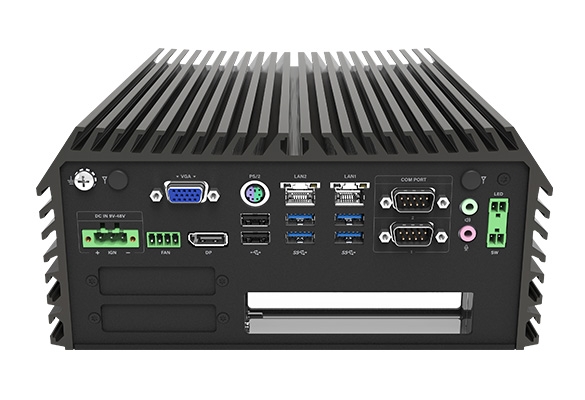

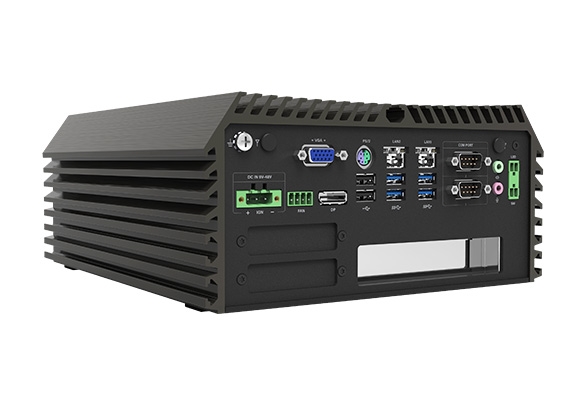

DS-1401 拥有丰富且专为工业需求设计的 I/O 接口，包括至多 2x 1 GbE LAN、6x USB 3.2、2x USB 2.0、2x RS232/422/485、2x 2.5 吋 SATA、3x mSATA、1x M.2 key M（适用于 NVMe SSD）、2x SIM 卡插槽、3x Mini-PCIe，以及独立的四显输出（DisplayPort、HDMI、VGA）。此外，尚可透过 Cincoze 专属的 CMI/CFM 模块可增加额外的 I/O 或其他功能，如 10 GbE LAN、PoE（网口供电）和 IGN（智能点火控制）等功能。
PCI/PCIe
扩展卡
——
DS-1401 至多可容纳一张 110W 且尺寸为 111 x 235mm 的 PCI/PCIe 扩展卡。可依据应用需求，灵活扩展 I/O、GPU、影像采集、数据采集及运动控制卡等。
可调式
PCIe 固定架
——
荣获专利的 PCI/PCIe 卡可调式固定架，能够稳妥的固定附加卡。如此独特的设计，在高振动的环境中，有效避免卡片因振动造成松脱，确保系统的稳定运行。
Patent No. I773359强固设计 稳健可靠
——
DS-1401 的强固性可从其工业级保护设计及不同领域行业认证中体现。除了宽温（-40 ~ 70°C）、宽电压（9 - 48 VDC）、过电压、过电流和静电保护（ESD）等特点，还符合军规冲击震动标准 MIL-STD-810G。通过国际认可的 UL 62368-1 安全认证，进一步保障产品的安全性和可靠性。为提供更安心的轨道交通解决方案，还通过 EN 50155 中的电磁兼容（EMC）EN 50121-3-2 标准。
![[ 媒体评测 ] Exploring the Versatility and Reliability of Cincoze DS-1402: In-Depth Review by CNX Software](data/images/202407/1721295783355424997.jpg)
![[ 产品聚焦 ] Cincoze 边缘计算解決方案](data/images/202405/1715829805029028425.jpg)
| Model Name | DS-1401 | |
|---|---|---|
| System | Processor | • 13th Generation Intel® Raptor Lake-S Series CPU: • 12th Generation Intel® Alder Lake-S Series CPU: |
| Chipset | • Intel R680E Chipset | |
| Memory | • 2x DDR5 4800 MHz SO-DIMM Socket, Supports Un-buffered and ECC Type, Up to 64GB | |
| BIOS | • AMI BIOS | |
| Graphics | Graphics Engine | • Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5 • Integrated Intel® UHD Graphics 730: Core™ i3 • Integrated Intel® UHD Graphics 710: Pentium®/Celeron® |
| Maximum Display Output | • Supports Quad Independent Display | |
| VGA | • 1x VGA Connector : 1920 x 1080 @ 60Hz | |
| DP | • 2x DP Connector : 4096 x 2304 @ 60Hz * Verified maximum DP resolution: 3840x2160 @ 60Hz | |
| HDMI | • 1x HDMI Connector : 4096x2160 @ 30Hz * Verified maximum resolution: 3840x2160 @ 30Hz | |
| Audio | Audio Codec | • Realtek® ALC888, High Definition Audio |
| Line-out | • 1 x Line-out, Phone Jack 3.5mm | |
| Mic-in | • 1 x Mic-in, Phone Jack 3.5mm | |
| I/O | LAN | • 2 x GbE LAN, RJ45 - GbE1: Intel® I219 - GbE2: Intel® I210 |
| COM | • 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 | |
| USB | • 2 x USB 3.2 Gen2x1 (10Gbps), Type A • 4 x USB 3.2 Gen1x1 (5Gbps), Type A • 2 x USB 2.0 (480Mbps), Type A | |
| PS/2 | • 1 x PS/2, 6 Pin Mini-DIN Female Connector | |
| Storage | SSD/HDD | • 1x 2.5” Front Accessible SATA HDD/SSD Bay ( SATA 3.0 ) • 1x 2.5” Internal SATA HDD/SSD Bay ( SATA 3.0 ) |
| mSATA | • 3x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket ) | |
| M.2 SSD | • 1x M.2 Key M Type 2280 Socket, Support PCIe Gen3 x4 NVMe SSD or SATA SSD ( SATA 3.0 ) | |
| RAID | • Support RAID 0/1/5/10 | |
| Expansion | PCI Express | • 1 x PCI/PCIe Expansion Slot with Optional Riser Card * Supports maximum dimensions of add-on card (H x L) : 111 x 235 mm |
| Mini PCI Express | • 3 x Full-size Mini-PCIe Socket | |
| SIM Socket | • 2 x SIM Socket | |
| CMI (Combined Multiple I/O) Interface | • 2 x High Speed CMI Interface for optional CMI Module Expansion • 2 x Low Speed CMI Interface for optional CMI Module Expansion | |
| CFM (Control Function Module) Interface | • 1 x CFM IGN Interface for optional CFM-IGN Module Expansion | |
| Other Function | External FAN Connector | • 1 x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS) |
| Power Ignition Sensing | • Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module) | |
| Clear CMOS Switch | • 1 x Clear CMOS Switch | |
| Reset Button | • 1 x Reset Button | |
| Instant Reboot | • Support 0.2sec Instant Reboot Technology | |
| Watchdog Timer | • Software Programmable Supports 256 Levels System Reset | |
| Power | Power Button | • 1 x ATX Power On/Off Button |
| Power Mode Switch | • 1 x AT/ATX Mode Switch | |
| Power Input | • 9 - 48VDC, 3-pin Terminal Block | |
| Remote Power On/Off | • 1 x Remote Power On/Off, 2-pin Terminal Block | |
| Remote Power LED | • 1 x Remote Power LED, 2-pin Terminal Block | |
| Physical | Dimension ( W x D x H ) | • 227 x 261 x 108 mm |
| Weight Information | • 5.02 KG | |
| Mechanical Construction | • Extruded Aluminum with Heavy Duty Metal | |
| Mounting | • Wall | |
| Physical Design | • Fanless Design • Cableless Design • Jumper-less Design • Unibody Design | |
| Reliability & Protection | Reverse Power Input Protection | • Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | • 15A | |
| CMOS Battery Backup | • SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| MTBF | • 371,274 Hours - Database: Telcordia SR-332 Issue 3, Method 1, Case 3 | |
| Operating System | Windows | • Windows®11, Windows®10 |
| Linux | • Ubuntu 22.04 | |
| Environment | Operating Temperature | • 35W TDP Processor: -40°C to 70°C • 65W TDP Processor: -40°C to 50°C (With External Fan Kit) - With extended temperature peripherals; Ambient with air flow - According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | • -40°C to 85°C | |
| Relative Humidity | • 95%RH @ 70°C (non-Condensing) | |
| Shock | • MIL-STD-810G | |
| Vibration | • MIL-STD-810G | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN 50155 (EN 50121-3-2 Only) | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
| Safety | • UL, cUL, CB, IEC, EN 62368-1 | |
| Model No. | Description |
|---|---|
| DS-1401-R10 | 13/12th Generation Intel Core Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer with 1x PCI/PCIe Expansion Slot |
| √ DS-1401 Embedded System x1 | √ Heatsink Pack x1 |
| √ Wall Mounting Kit x1 | √ Screw Pack x1 |
| √ Power Terminal Block Connector x 1 | √ Remote Function Terminal Block Connector x 2 |
| √ Fan Terminal Block Connector x 1 |
| Model No. | Description |
|---|---|
| CMI-LAN01-R12 | CMI Module with 4x RJ45 Intel I210 GbE LAN Ports |
| CMI-M12LAN01-R12 | CMI Module with 4x M12 Intel I210 GbE LAN Ports |
| CMI-XM12LAN01-R10 | CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports |
| CMI-10GLAN03-R10 | CMI Module with 2x Intel X550 10GbE LAN, RJ45 Port |
| CMI-COM02 | CMI Module with 4x RS232/422/485 Serial Ports |
| CMI-ICOM01 | CMI Module with 4x Electrical Isolated RS-232 Serial Ports |
| CMI-DIO02 | CMI Module with 16x Optical Isolated DIO (8 in/8 out) |
| MEC-LAN-M102-30 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable |
| MEC-USB-M102-30 | Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 30cm cable |
| MEC-COM-M212-DB9 | Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Standard DB9 Cable |
| UB1010 | Universal Bracket with 4x M12 Cutout |
| UB1012 | Universal Bracket with 4x RJ45 Cutout |
| UB1018 | Universal Bracket with DIO Cutout |
| UB1028 | Universal Bracket with 2x RJ45 Cutout |
| UB1030-R10 | Universal Bracket with 4x M12 X-Coded Cutout |
| UB0303 | 2x Universal Bracket each with 1x DB9 Cutout |
| UB0311 | Universal Bracket with 2x RJ45 Cutout |
| UB0314 | Universal Bracket with 2x USB Cutout |
| CFM-PoE03 | CFM Module with PoE Control Function, Individual Port 25.5W |
| CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable |
| RC-E16-01 | Riser Card with 1 x PCIe x 16 Slot |
| RC-PI-01 | Riser Card with 1 x PCI Slot |
| FAN-EX101 | External Fan with 4pin Terminal Block Plug, Mounting Bracket, Support smart fan |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI |
