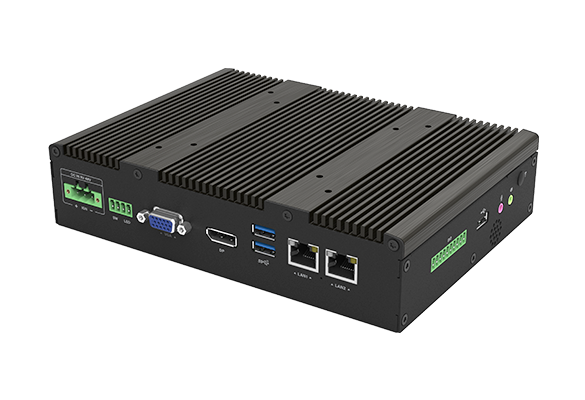

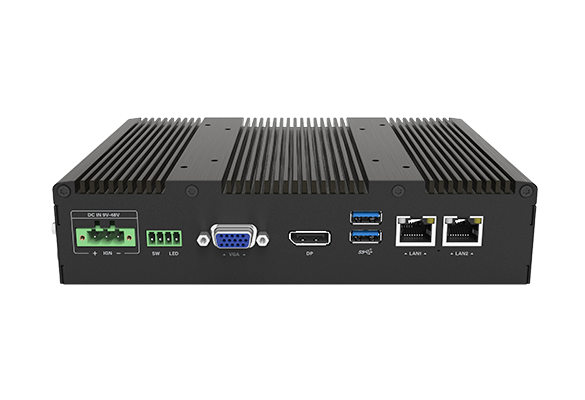

P1301

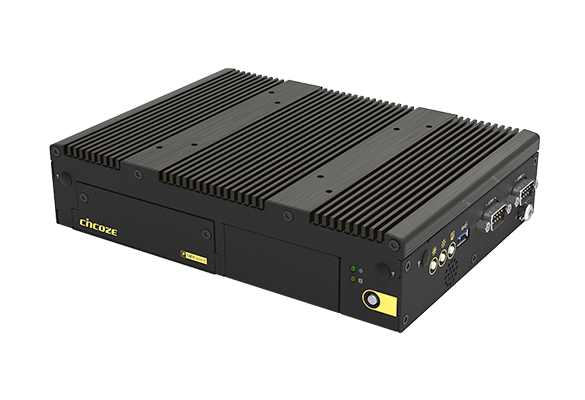

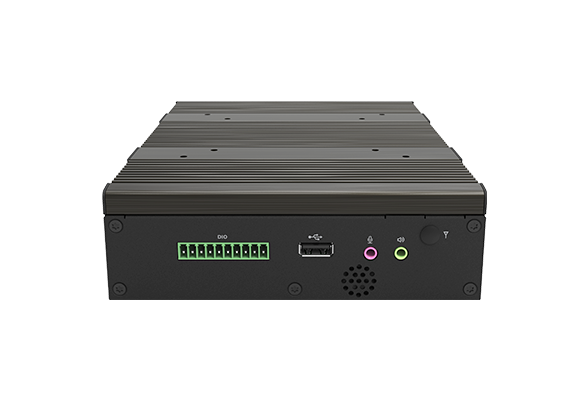

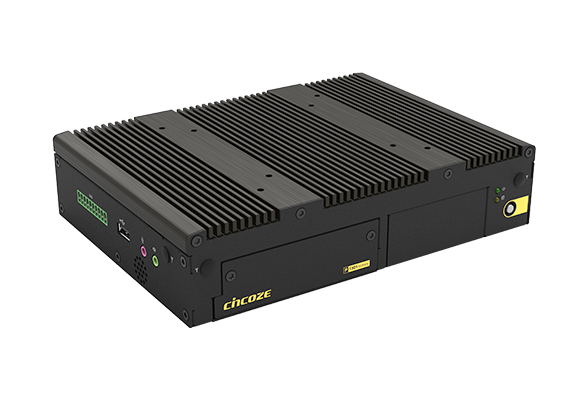

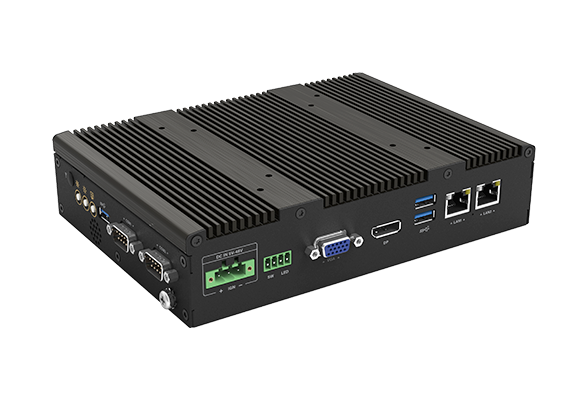

Intel® Alder Lake-N 平台，搭载 CDS 技术的薄型嵌入式计算机
产品特点
- 搭载 Intel® Alder Lake-N Core™ i3-N305, N97 处理器 和 Atom® x7425E 处理器
- 1 个 DDR5 SO-DIMM 插槽，支持最高 4800MHz 和 16GB 内存
- 1 个 M.2 Key E Type 2230 插槽，可扩展 无线网络 / Intel CNVi 模块
- 1 个 M.2 Key B Type 3042 / 3052 插槽，可扩展 5G / 存储 / 附加卡
- 支持 Cincoze 专利 CDS 技术（专利号码 M482908）
- CFM 技术，支持电源点火感应和 PoE 功能
- 宽工作温度范围 -40°C 到 70°C
- 工业环境电磁相容性（EMC）辐射 / 抗扰度标准：EN61000-6-4, EN61000-6-2
- Safety Standard: UL, cUL, CB, IEC, EN 62368-1
产品认证
产品介绍
P1301 搭载 Intel® Alder Lake-N 处理器，是一款针对工业物联网边缘运算而设计的无风扇，薄型嵌入式电脑。灵活的扩充性是特点之一，除原生丰富的 I/O 接口外，也具备 M.2 Key E Type 2230 以及 M.2 Key B Type 3052 扩充槽，可满足无线通讯及移动应用。独家 CFM 扩充模组则可增添 PoE/IGN 等功能，机身厚度仅 46.5 mm，适合狭小空间安装。
一机双用途（嵌入式电脑 & 平板电脑），可说是 P1301 的最大卖点，仅需透过独家的 CDS 专利技术，依据应用需求搭配不同特性的荧幕模组 (Display Module) 即可成为工业平板电脑 (Industrial Panel PC)、高亮度平板电脑 (Sunlight Readable Panel PC) 或是开放式架构平板电脑 (Open Frame Panel PC)，满足多元化的显示运算需求。
Product Category >>>> Modular Panel PC & Industrial Monitor
AI 与多工运行的强悍效能
——
搭载 Intel® 7 制程的 Alder Lake-N 四核心处理器，与前一代 Elkhart Lake 平台相比，CPU Single – Thread 效能提升高达 130%，Multi-thread 效能提升 109%。而处理器内建 UHD Graphics 显示晶片，其 AI 推论的物件辨识效能更是提升了 6.85 倍。
薄型机身 克服受限环境
——
单机使用时，P1301 超薄紧凑设计 (204.5 x 149 x 46.5 mm) ，可灵活安装在各式狭小的应用环境，如设备机台，控制机箱或 AMR 等，适合智慧工厂中生产数据收集处理或是移动设备等应用。
一机双用 (One Computer / Two Purposes)
——
P1301 不但是一台嵌入式电脑，还能透过德承专利 CDS (Convertible Display System) 技术，搭配显示荧幕模组 (CV-100 系列)、阳光下可视模组 (CS-100 系列)、开放式架构显示荧幕模组 (CO-100 系列) 组成不同特性的平板电脑。
Patent No. M482908
5G、WIFI、GNSS
——
内建的 M.2 Key E、Key B 以及 SIM 卡槽等可全面覆盖 WIFI、Bluetooth、GNSS、GSM 等无线通讯应用需求。
高规格的工业级保护
——
P1301 多安装在设备，机柜与移动装置中，耐震能力与电磁相容性 (EMC) 成为稳定持续运作的主要考验，P1301 除通过不同振动与冲击的可靠度测试，如随机振动 (5G)、正弦振动 (1G) 与耐冲击 (50G) 外，更符合工业环境的 EMC 测试标准 (EN61000-6-4 及 EN61000-6-2)。
视频
![[ 产品聚焦 ] Cincoze 工业平板电脑解決方案](data/images/202407/1721100775464095640.jpg)
详细规格
P1301
| Model Name | P1301 | |
|---|---|---|
| System | Processor | • Onboard Intel® Alder Lake-N Series Processor: - Intel® Core™ i3-N305 8 Cores Up to 3.80 GHz, TDP 15W - Intel® Processor N97 4 Cores Up to 3.60 GHz, TDP 12W - Intel Atom® x7425E 4 Cores Up to 3.40 GHz, TDP 12W |
| Memory | • 1x DDR5 4800MHz SO-DIMM Socket Supports Un-buffered and Non-ECC Type, Up to 16GB | |
| BIOS | • AMI BIOS | |
| Graphics | Graphics Engine | • Integrated Intel® UHD Graphics |
| Maximum Display Output | • Supports Triple Independent Display | |
| CDS | • 1x CDS Connector (1920 x 1080 @60Hz) | |
| DP | • 1x DisplayPort Connector (4096 x 2304 @60Hz) * Verified maximum resolution: 3840 x 2160 @ 60Hz | |
| VGA | • 1x VGA Connector (1920 x 1200 @60Hz) | |
| Audio | Audio Codec | • Realtek® ALC888, High Definition Audio |
| Line-out | • 1x Line-out, Phone Jack 3.5mm | |
| Mic-in | • 1x Mic-in, Phone Jack 3.5mm | |
| I/O | LAN | • 2x 2.5GbE LAN, RJ45 - GbE1 / GbE2: Intel® I225 |

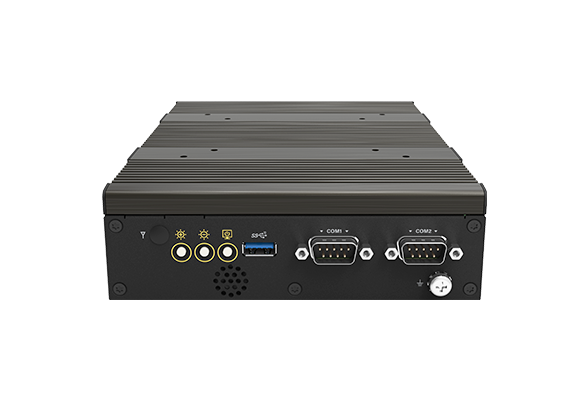

| COM | • 2x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9 | |
| USB | • 3 x USB 3.2 Gen2x1 (10Gbps), Type A • 1 x USB 2.0 (480Mbps), Type A | |

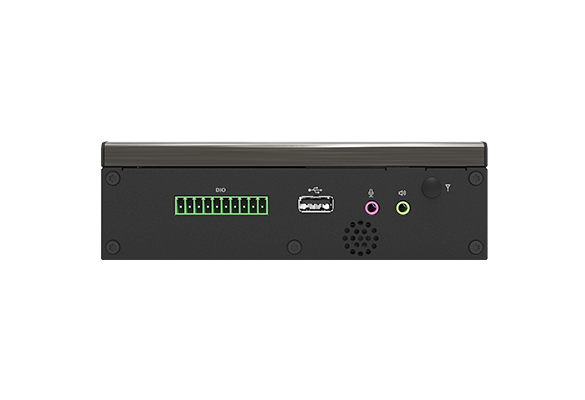

| DIO | • 8x Isolated Digital I/O (4in/4out), 10-Pin Terminal Block | |

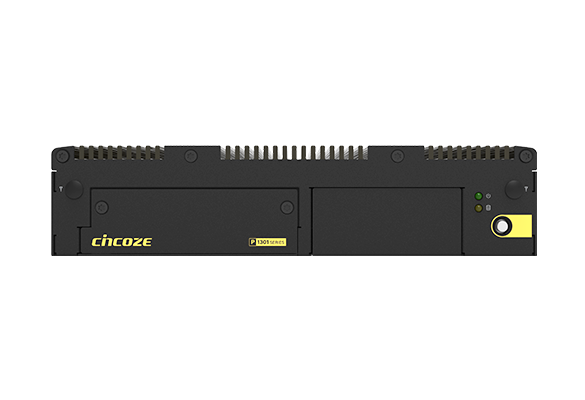

| Storage | SSD/HDD | • 1x 2.5" Front Accessible SATA HDD/SSD Bay |
| M.2 SSD | • 1 x M.2 SSD Shared by M.2 Key B Socket | |
| Expansion | M.2 Key E Socket | • 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x1 / USB2.0), Support Wireless/Intel CNVi Module Expansion |
| M.2 Key B Socket | • 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x1 / USB3.2 Gen2 x1 / SATA ), Support 5G/Storage/Add-on Card Expansion | |
| SIM Socket | • 1x Front Accessible SIM Socket | |
| CFM (Control Function Module) Interface | • 1x CFM Interface for optional IGN Module Expansion • 1x CFM Interface for optional PoE Module Expansion | |
| Other Function | Clear CMOS Switch | • 1 x Clear CMOS Switch |
| Reset Button | • 1x Reset Button | |
| Instant Reboot | • Support 0.2sec Instant Reboot Technology | |
| Watchdog Timer | • Software Programmable Supports 256 Levels System Reset | |
| OSD Function | • LCD On/Off, Brightness Up, Brightness Down | |
| Internal Speaker | • AMP 2W + 2W | |
| Status LED Indicator | • Power LED, HDD LED | |
| Power | Power Button | • 1x ATX Power On/Off Button |
| Power Mode Switch | • 1x AT/ATX Mode Switch | |

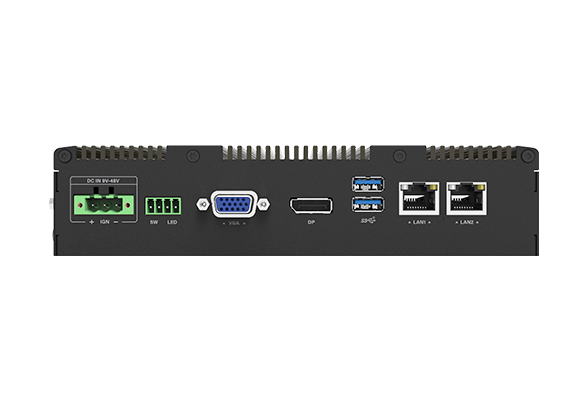

| Power Input | • 9 - 48VDC, 3-pin Terminal Block | |
| Remote Power On/Off | • 1x Remote Power On/Off, 2-pin Terminal Block | |
| Remote Power LED | • 1x Remote Power LED, 2-pin Terminal Block | |
| Max. Power Consumption | •
i3-N305 CPU - OS Idle Mode: 40.09 W - Full Loading: 48.59 W • N97 CPU - OS Idle Mode: 31.36 W - Full Loading: 34.04 W | |
| Inrush Current (Peak) | •
i3-N305 CPU: 5.538 A@12V • N97 CPU: 5.242 A@12V | |
| Operating Stystem | Microsoft® Windows® | • Windows®11, Windows®10 |
| Linux | • Ubuntu 22.04 | |
| Physical | Dimension ( W x D x H ) | • 204.5 x 149 x 46.5mm |
| Weight | • 1.57 kg | |
| Mechanical Construction | • Extruded Aluminum with Heavy Duty Metal | |
| Mounting | • Wall / VESA / CDS / DIN Rail | |
| Physical Design | • Fanless Design • Jumper-less Design | |
| Reliability & Protection | Reverse Power Input | • Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the present level to recover | |
| Over Current Protection | • 15A | |
| CMOS Battery Backup | • SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| MTBF | • 306,338 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 | |
| Environment | Operating Temperature | • Intel® Processor N97 / Atom® x7425E: -40°C to 70°C • Intel® Core™ i3-N305: -40°C to 60°C * PassMark Burn-In Test: 100% CPU, 2D/3D Graphics (without thermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | • -40°C to 70°C | |
| Relative Humidity | • Intel® Processor N97 / Atom® x7425E: 95%RH @ 70°C (non-Condensing) • Intel® Core™ i3-N305: 95%RH @ 60°C (non-Condensing) | |
| Shock | • Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | |
| Vibration | • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6) • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN61000-6-4, EN61000-6-2 @ DC-input 24V | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V (**Compliant with the standard when utilizing shielded ethernet cable.) • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz | |
| Safety | UL, cUL, CB, IEC, EN 62368-1 | |
订购信息
| Model No. | Product Description |
|---|---|
| P1301-i3-R10 | Intel® Core i3-N305 Octa Core Slim Embedded Computer with CDS Technology |
| P1301-N97-R10 | Intel® Processor N97 Quad Core Slim Embedded Computer with CDS Technology |
| P1301-X7425E-R10 | Intel® Atom® x7425E Quad Core Slim Embedded Computer with CDS Technology |
| • P1301 Slim Embedded Computer x 1 | • Power Terminal Block Connector x 1 |
| • Thermal Pad (for CPU Thermal Block) x 1 | • Remote Function Terminal Block Connector x 1 |
| • Screw Pack x 4 | • DIO Terminal Block Connector x 1 |
| • Wall Mounting Kit x 1 | • M.2 Key B Type 3052 to 3042 Adapter Bracket x 1 |
| Model No. | Description |
|---|---|
| CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (43 x 36 mm) |
| CFM-PoE02 | CFM Module with PoE Control Function, Individual Port 25.5W |
| DIN01 | DIN-RAIL Mount Kit, KMRH-K175 |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C) |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI |
