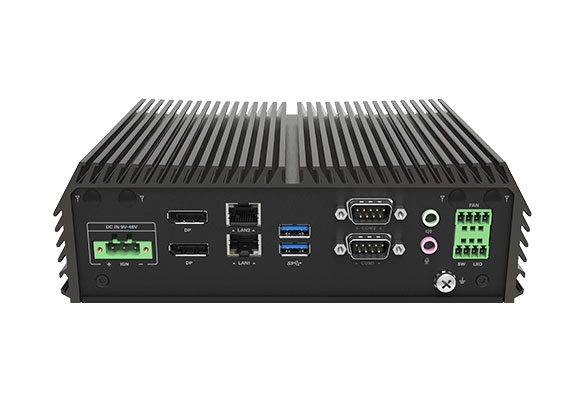

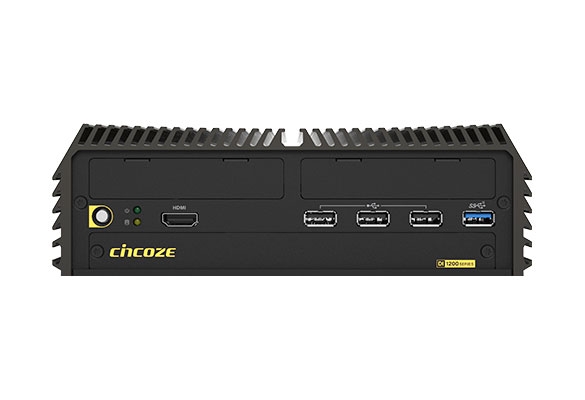

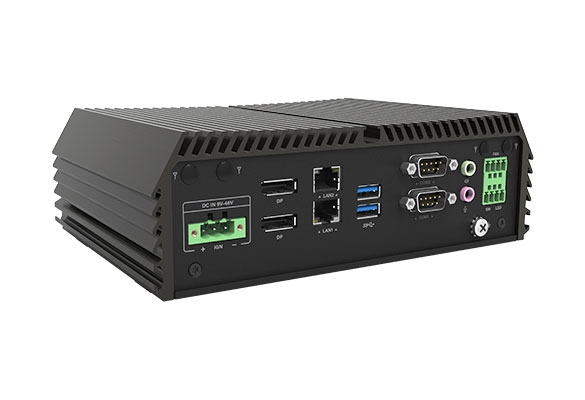

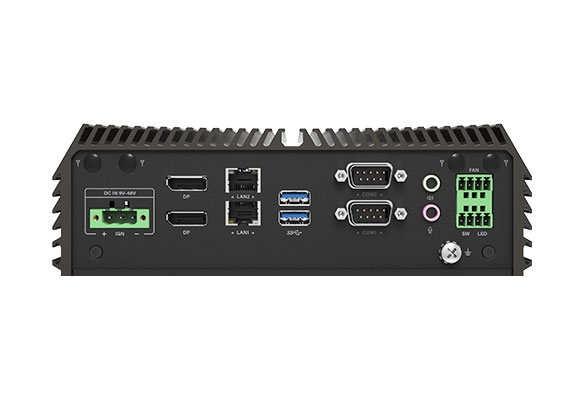

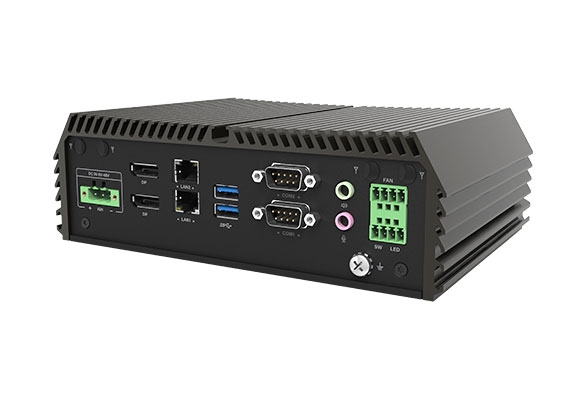

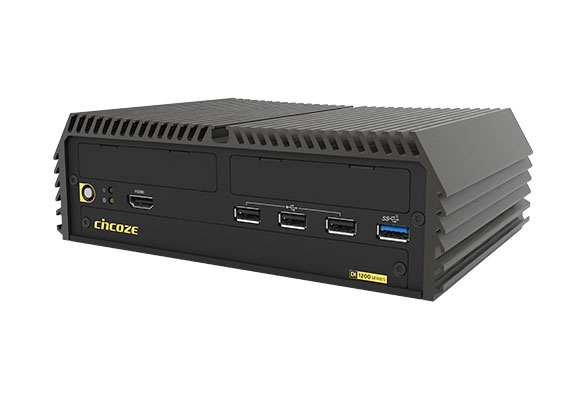

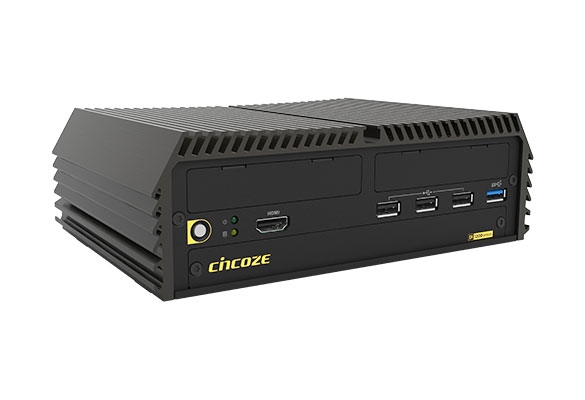

DI-1200
Intel® 第 12 代 Alder Lake-P 平台，高效且节能的强固型嵌入式电脑
产品特点
- 搭载第 12 代 Intel® Alder Lake-P U 系列 Core™ i7/i5/i3 处理器
- 1 个 DDR5 SO-DIMM 插槽，支持最高 4800MHz，32GB 内存
- 四个独立显示 (2x DP / HDMI / CMI 显示)
- 1 个 M.2 Key E Type 2230 插槽，可扩展 无线网络 / Intel CNVi 模块
- 1 个 M.2 Key B Type 3042 / 3052 插槽，可扩展 5G / 存储 / 附加卡
- CMI 技术，可选的 I/O 模块扩展
- CFM 技术，支持电源点火感应功能与 PoE
- 宽工作温度范围 -40°C 到 70°C
- 安全标准: UL、cUL、CB、IEC、EN 62368-1
产品认证
产品介绍
DI-1200 搭载第 12 代 Intel® Core™ U 系列处理器（Alder Lake-P Platform），在提供强大效能的同时也拥有 15W 的低功耗优势。在紧凑外型下蕴含丰富 I/O 界面和扩充选项，可满足狭小空间中对高效能强固嵌入式电脑的需求，特别适用于工业自动化、仓储物流、交通、环境监控以及物联网等应用场景。
高效能、低功耗
——
DI-1200 搭载 Intel® 7 制程的第 12 代 Core™ i7/i5/i3（Alder Lake-P）U 系列处理器，展示强大的处理效能。仅 15W 的超低功耗，非常适合受电池容量限制的移动式设备。
小于 A5
——
DI-1200 尺寸仅为 203 x 142 x 66.8mm，比 A5 还小。是移动设备 (自动引导车 AGV、自主移动机器人 AMR）、狭小车内空间或工厂端小型机箱的理想选择。
高速 I/O
——
DI-1200 提供丰富的高速 I/O，包括：LAN (10GbE、2.5GbE、1GbE)、USB 3.2 (10Gbps、5Gbps)、USB 2.0 等，使得资料与影响的传输更为迅速，能轻松连接各式高速装置。
完整的无线传输方案
——
配置了一个 M.2 Key E 插槽和一个 M.2 Key B 插槽，提供全方位的无线传输选项，包括：GSM、GNSS、Wi-Fi 和蓝牙。同时可支持 Intel CNVi 模组，满足多元的传输需求。
快速抽取硬盘
——
移动式设备常面临快速拿取资料的需求，DI-1200 将具有可热插拔 2.5 寸 SATA HDD/SSD 插槽设计在机身前维护区，可轻松快捷取得硬盘资料。
安全稳固
——
DI-1200 以其工业级防护和多项行业认证展现优越的强固性。符合国际电工委员会制定工业环境下的 EMC 标准 (IEC 61000-6-2 和 IEC 61000-6-4)，确保在众多电磁波的环境中仍能正常运作。同时，DI-1200 符合美国军事标准 MIL-STD-810H，能够在极端冲击和震动条件下稳定运行。
视频
![[ 产品聚焦 ] Cincoze 边缘计算解決方案](data/images/202405/1715829805029028425.jpg)
详细规格
| Model Name | DI-1200 | |
|---|---|---|
| System | Processor | • Onboard 12th Intel® Alder Lake-P U-Series CPU: - Intel® Core™ i7-1265UE 10 Cores Up to 4.70 GHz, TDP 15W - Intel® Core™ i5-1245UE 10 Cores Up to 4.40 GHz, TDP 15W - Intel® Core™ i3-1215UE 6 Cores Up to 4.40 GHz, TDP 15W |
| Memory | • 1x DDR5 SO-DIMM Socket, Supports Un-buffered and non-ECC Type, Up to 32GB | |
| BIOS | • AMI BIOS | |
| Graphics | Graphics Engine | • Integrated Intel® Iris® Xe Graphics: Core™ i7-1265UE, i5-1245UE • Integrated Intel® UHD Graphics: Core™ i3-1215UE |
| Maximum Display Output | • Supports Quad Independent Display | |
| HDMI | • 1x HDMI Connector (3840 x 2160@60Hz) | |
| DP | • 2x DisplayPort Connector (3840 x 2160@60Hz) | |
| CMI Display | • 1x CMI Interface for Optional CMI-DP/CMI-HDMI/CMI-VGA Module Expansion | |
| Audio | Audio Codec | • Realtek® ALC888, High Definition Audio |
| Line-out | • 1 x Line-out, Phone Jack 3.5mm | |
| Mic-in | • 1 x Mic-in, Phone Jack 3.5mm | |
| I/O | LAN | • 2x 2.5 GbE LAN, RJ45 - GbE1: Intel® I225 - GbE2: Intel® I225 |
| COM | • 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 | |
| USB | • 1 x USB 3.2 Gen2x1 (10Gbps), Type A • 2 x USB 3.2 Gen1x1 (5Gbps), Type A • 3 x USB 2.0 (480Mbps), Type A | |
| Storage | SSD/HDD | • 1x 2.5" SATA HDD/SSD Bay (SATA 3.0) |
| M.2 SSD | • 1 x M.2 SSD shared by M.2 Key B Type 3052 Socket | |
| RAID | • Support RAID 0/1 | |
| Expansion | M.2 Key E Socket | • 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x1 / USB2.0), Support Wireless/Intel CNVi Module Expansion * The maximum height of the M.2 Key E add-on card is limited to 6.7mm. |
| M.2 Key B Socket | • 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x1 / USB3.2 Gen2 x1 / USB2.0 / SATA ), Support 5G/Storage/Add-on Card Expansion * The maximum height of the M.2 Key B add-on card varies depending on the installed CMI module. Please refer to the manual for detailed information. | |
| SIM Socket | • 2 x Front Accessible SIM Socket | |
| CMI (Combined Multiple I/O) Interface | • 1x CMI Interface for optional CMI-LAN Module Expansion • 1x CMI Interface for optional CMI-Display / CMI-COM / CMI-DIO Module Expansion | |
| CFM (Control Function Module) Interface | • 1x CFM IGN Interface for optional CFM-IGN Module Expansion | |
| Other Function | External FAN Connector | • 1x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS) |
| Clear CMOS Switch | • 1x Clear CMOS Switch | |
| Reset Button | • 1x Reset Button | |
| Instant Reboot | • Support 0.2sec Instant Reboot Technology | |
| Watchdog Timer | • Software Programmable Supports 256 Levels System Reset | |
| Power | Power Button | • 1 x ATX Power On/Off Button |
| Power Mode Switch | • 1 x AT/ATX Mode Switch | |
| Power Input | • 9 - 48VDC, 3-pin Terminal Block | |
| Remote Power On/Off | • 1 x Remote Power On/Off, 2-pin Terminal Block | |
| Remote Power LED | • 1 x Remote Power LED, 2-pin Terminal Block | |
| Max. Power Consumption | • I7-1265UE CPU - OS Idle Mode: 74.21 W - Full Loading: 104.74W | |
| Inrush Current (Peak) | • I7-1265UE CPU: 4.963 A@24V | |
| Physical | Dimension ( W x D x H ) | • 203 x 142 x 66.8 mm |
| Weight Information | • 1.8 KG | |
| Mechanical Construction | • Extruded Aluminum with Heavy Duty Metal | |
| Mounting | • Wall / Side / DIN-RAIL / VESA Mount | |
| Physical Design | • Fanless Design • Cableless Design • Jumper-less Design • Unibody Design | |
| Reliability & Protection | Reverse Power Input | • Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | • 15A | |
| CMOS Battery Backup | • SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| MTBF | • 486,235 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 | |
| Operating System | Windows | • Windows®11, Windows®10 |
| Linux | • Ubuntu 22.04 | |
| Environment | Operating Temperature | • -40°C to 70°C - PassMark Burn-In Test: 100% CPU, 2D/3D Graphics (without thermal throttling) - With extended temperature peripherals; Ambient with air flow - According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | • -40°C to 70°C | |
| Relative Humidity | • 95% RH @ 70°C (Non-condensing) | |
| Shock | • MIL-STD-810H | |
| Vibration | • MIL-STD-810H | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN IEC 61000-6-4 / EN IEC 61000-6-2 (24VDC Input Only) • EN 50155 (EN 50121-3-2 Only) • E-mark (Pending) | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN 61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 2 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V (**Compliant with the standard when utilizing shielded cable.) • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz | |
| Safety | • UL, cUL, CB, IEC, EN 62368-1 | |
订购信息
| Model No. | Product Description |
|---|---|
| DI-1200-i7-R10 | 12th Generation Intel Core i7-1265UE High Performance, Compact and Modular Rugged Embedded Computer |
| DI-1200-i5-R10 | 12th Generation Intel Core i5-1245UE High Performance, Compact and Modular Rugged Embedded Computer |
| DI-1200-i3-R10 | 12th Generation Intel Core i3-1215UE High Performance, Compact and Modular Rugged Embedded Computer |
| • DI-1200 Embedded Computer x1 | • Power Terminal Block Connector x1 |
| • CPU Thermal Pad x1 | • Remote Power On/Off + Remote Power LED Connector x 1 |
| • Screw Pack x 1 | • Fan Terminal Block Connector x 1 |
| • Wall Mounting Kit x1 | • M.2 Key B Type 3052 to 3042 Adapter Bracket x1 |
| Model No. | Description |
|---|---|
| CFM-IGN102 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable |
| CFM-PoE06-R10 | CFM Module with PoE Function, Individual Port 25.5W |
| CMI-LAN01-R12 | CMI Module with 4x RJ45 Intel I210 GbE LAN Ports |
| CMI-M12LAN01-R12 | CMI Module with 4 x M12 Intel I210 GbE LAN Ports |
| CMI-XM12LAN01-R10 | CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports |
| CMI-10GLAN04-R10 | CMI Module with 2x Intel X550 10GbE LAN Ports |
| CMI-VGA02-R10 | CMI Module with 1x VGA Port |
| CMI-HD04-R10 | CMI Module with 1x HDMI Port |
| CMI-DP02-R10 | CMI Module with 1x DisplayPort |
| CMI-DIO05-R10 | CMI Module with 16DIO (8in 8out) |
| CMI-COM05-R10 | CMI Module with 2x RS232/422/485 (Support 5V/12V) |
| UB1503-R11 | Universal Bracket with 2x DB9 Cutout |
| UB1506-R10 | Universal Bracket with DisplayPort Cutout |
| UB1508-R10 | Universal Bracket with HDMI Cutout |
| UB1510-R11 | Universal Bracket with 4x M12 Cutout |
| UB1512-R11 | Universal Bracket with 4x RJ45 Cutout for CMI-LAN Expansion |
| UB1516-R10 | Universal Bracket with VGA Cutout |
| UB1518-R10 | Universal Bracket with DIO Cutout |
| UB1528-R11 | Universal Bracket with 2x RJ45 Cutout for CMI-10GLAN Expansion |
| DINRAIL-R10 | Diamond series DIN-RAIL Mount Kit |
| FAN-EX103 | External Fan with 4pin Terminal Block Plug and Mounting Bracket, Support Smart Fan (*External fan must be installed when using CFM-PoE module) |
| SIDE01 | DI Series Side Mount Kit |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug and Tubes, Level VI |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI |
