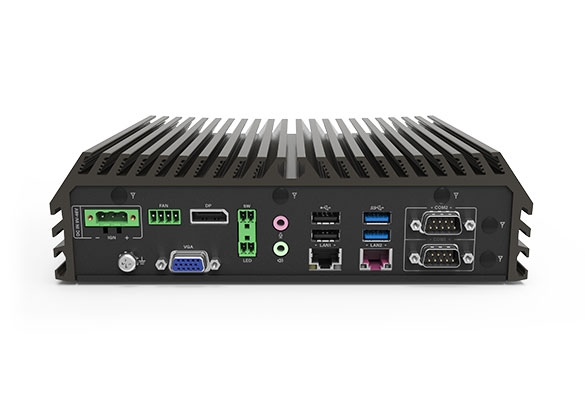

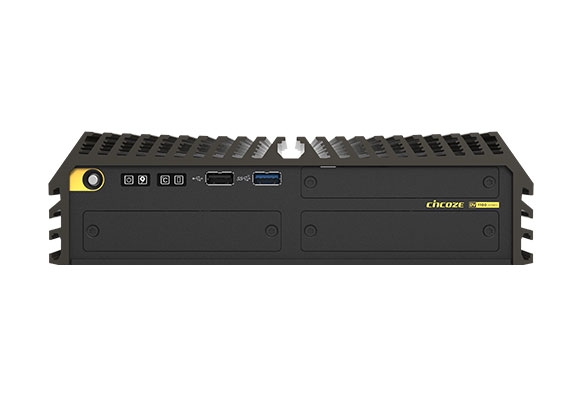

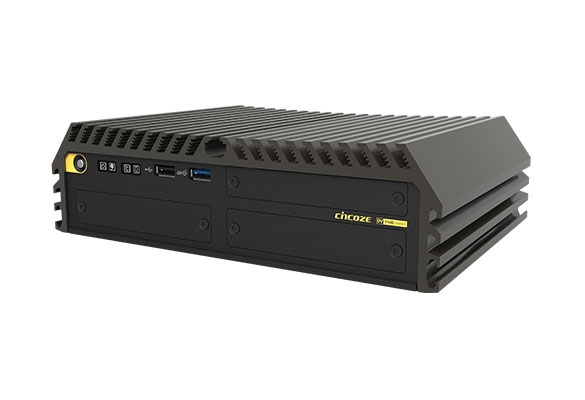

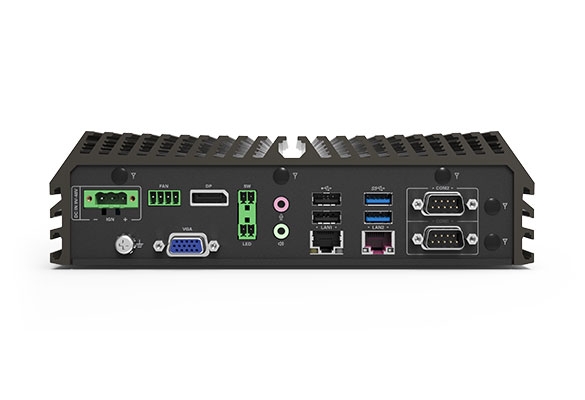

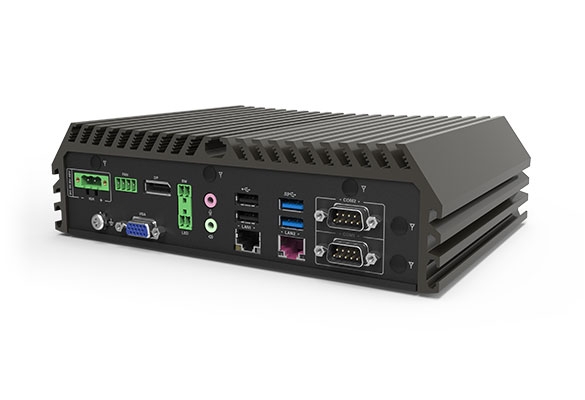

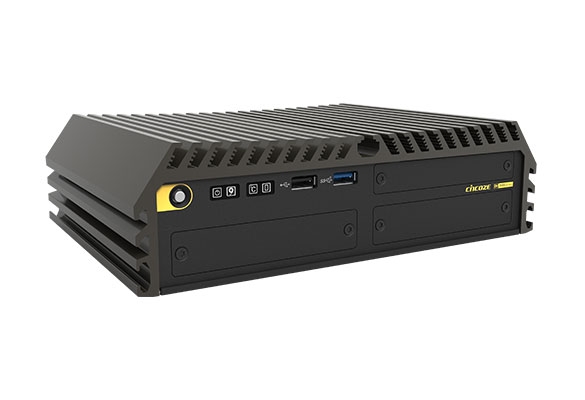

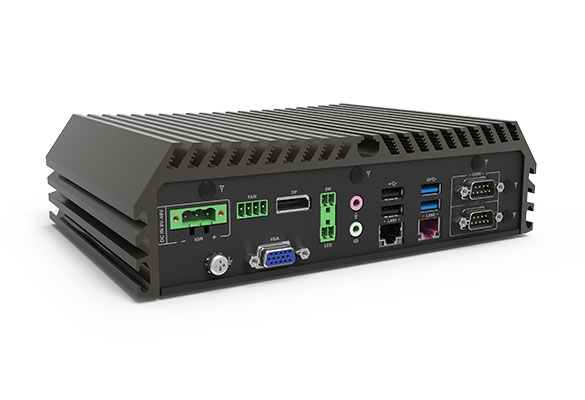

DV-1100
- Intel® 13/12th Gen. Core™ i9/i7/i5/i3 Processors (max 65 W TDP)
- 1x M.2 Key M Type 2280 Socket for PCIe Gen 4x4 NVMe Storage
- 1x M.2 Key E Type 2230 Socket for Wireless/Intel CNVi Module Expansion
- 1x M.2 Key B Type 3052/3042 Socket for 5G/Storage/Add-on Card Expansion
- 1x M.2 Key B Type 2242 Socket for Storage/Add-on Card Expansion
- Optional CMI & CFM Modules for I/O Expansion & Power Ignition Sensing Function
- Wide operating temperature -40°C to 70°C
- Safety Standard: UL, cUL, CB, IEC, EN 62368-1
DV-1100 搭载 Intel® 第十三代/第十二代处理器，是一款在效能需求与成本效益之间达成平衡的边缘运算嵌入式系统。透过 DV-1100 高效能的运算能力可迅速在边缘现场端，进行数据分析处理，做出判断，协助企业提高生产效率与正确性。将良好效能运算和工业耐用性整合于紧凑体积内。DV-1100 推荐使用在智慧制造、机器视觉、轨道交通或智慧城市等领域中，为受限于狭小空间的关键应用，提供必要的稳定性和可靠度。
效能、成本的 平衡
——
DV-1100 可搭载 Intel® 第 13/12 代 Core™ 处理器，可满足多工处理及多元应用所需要的运算效能，搭配紧凑的机体设计，在效能与成本间达成完美平衡。
紧凑 体积
——
体积仅 224.1 x 162 x 62 mm，可以轻松安装在任何地方，推荐给受空间限制的场域使用
高效的存储与 传输速度
——
DV-1100 配备高速 I/O 接口，包括 2.5G LAN 和 10Gbps USB 3.2 Gen2x1。在存储解决方案上，除了支持 2.5" HDD/SSD 外，还提供 NVMe SSD 的高速存储选项。
多样的 扩充设计
——
内建 M.2 Key B、M.2 Key E、M.2 Key M 插槽，能够依据不同的应用增添无线通讯 (5G、WIFI、GNSS) 以及存储功能。
多个 行业认证
——
DV-1100 的强固设计通过或符合多款工业级与行业特殊认证，如工业环境下的 EMC 标准 (EN61000-6-2/4)、军规冲击震动标准 (MIL-STD-810H) 、轨道交通 EN50155（EN 50121-3-2 only）等。
![[ 产品聚焦 ] Cincoze 边缘计算解決方案](data/images/202405/1715829805029028425.jpg)
| Model Name | DV-1100 | |
|---|---|---|
| System | Processor | 13th Generation Intel® Raptor Lake-S Series CPU: 12th Generation Intel® Alder Lake-S Series CPU: |
| Chipset | • Intel H610E Chipset | |
| Memory | • 1x DDR5 4800MHz SO-DIMM Socket Supports Un-buffered and non-ECC Type, Up to 32GB | |
| BIOS | • AMI BIOS | |
| Graphics | Graphics Engine | • Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5 • Integrated Intel® UHD Graphics 730: Core™ i3 • Integrated Intel® UHD Graphics 710: Pentium®/Celeron® |
| Maximum Display Output | • Supports Triple Independent Display | |
| DP | • 1x DisplayPort Connector: 3840 x 2160 @60Hz | |
| VGA | • 1x VGA Connector: 1920 x 1200 @60Hz | |
| CMI Display | • 1x CMI Interface for Optional CMI-DP/CMI-HDMI Module Expansion | |
| Audio | Audio Codec | • Realtek® ALC888, High Definition Audio |
| Line-out | • 1 x Line-out, Phone Jack 3.5mm | |
| Mic-in | • 1 x Mic-in, Phone Jack 3.5mm | |
| I/O | LAN | • 1x 2.5GbE LAN, RJ45 - Intel® I225 • 1x 1GbE LAN, RJ45 - Intel® I219 |
| COM | • 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 | |
| USB | • 1x 10Gbps USB3.2 Gen 2x1, Type A • 2x 5Gbps USB3.2 Gen 1x1, Type A • 3x 480Mbps USB2.0, Type A | |
| Storage | SSD/HDD | • 1x 2.5" SATA HDD/SSD Bay (SATA 3.0) |
| M.2 SSD | • 1x M.2 SSD Shared by M.2 Key M Type 2280 Socket, Support PCIe Gen 4x4 NVMe SSD or SATA 3.0 SSD • 2x M.2 SSD Shared by M.2 Key B Socket, Support PCIe Gen 3x2 NVMe SSD or SATA 3.0 SSD | |
| Expansion | M.2 Key E Socket | • 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x2 / USB2.0), Support Wireless/Intel CNVi Module Expansion |
| M.2 Key B Socket | • 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x2 / USB3.2 Gen2 x1 / USB2.0 / SATA), Support 5G/Storage/Add-on Card Expansion • 1x M.2 Key B Type 2242 Socket (PCIe Gen 3x2 / USB2.0 / SATA ), Support Storage/Add-on Card Expansion | |
| SIM Socket | • 1x Front Accessible Dual Nano SIM Socket | |
| CMI (Combined Multiple I/O) Interface | • 1x CMI Interface for optional CMI-Display Module Expansion • 2x CMI Interface for optional CMI-COM/DIO Module Expansion | |
| CFM (Control Function Module) Interface | • 1x CFM IGN Interface for optional CFM-IGN Module Expansion | |
| Other Function | External FAN Connector | • 1x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS) |
| Clear CMOS Switch | • 1x Clear CMOS Switch | |
| Reset Button | • 1x Reset Button | |
| Instant Reboot | • Support 0.2sec Instant Reboot Technology | |
| Watchdog Timer | • Software Programmable Supports 256 Levels System Reset | |
| Antenna Hole | • 5x Antenna Holes | |
| Power | Power Button | • 1 x ATX Power On/Off Button |
| Power Mode Switch | • 1 x AT/ATX Mode Switch | |
| Power Input | • 9 - 48VDC, 3-pin Terminal Block | |
| Remote Power On/Off | • 1 x Remote Power On/Off, 2-pin Terminal Block | |
| Remote Power LED | • 1 x Remote Power LED, 2-pin Terminal Block | |
| Max. Power Consumption | •
35W CPU - OS Idle Mode: 87.34 W - Full Loading: 204.46 W • 65W CPU - OS Idle Mode: 91.18 W - Full Loading: 307.92 W | |
| Inrush Current (Peak) | •
35W CPU: 4.362 A@24V • 65W CPU: 4.516 A@24V | |
| Physical | Dimension ( W x D x H ) | • 224.1 x 162 x 62 mm |
| Weight Information | • 2.52 KG | |
| Mechanical Construction | • Extruded Aluminum with Heavy Duty Metal | |
| Mounting | • Wall / DIN-RAIL / VESA Mount | |
| Physical Design | • Fanless Design • Cableess Design • Jumper-less Design • Unibody Design | |
| Reliability & Protection | Reverse Power Input Protection | • Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | • 15A | |
| CMOS Battery Backup | • SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| MTBF | • 413,236 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 | |
| Operating System | Windows | • Windows®11, Windows®10 |
| Linux | • Ubuntu 22.04 | |
| Environment | Operating Temperature | • 35W TDP Processor: -40°C to 70°C • 65W TDP Processor: -40°C to 55°C (With External Fan Kit) * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | • -40°C to 70°C | |
| Relative Humidity | • 95% RH @ 70°C (Non-condensing) | |
| Shock | • MIL-STD-810H | |
| Vibration | • MIL-STD-810H | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN IEC 61000-6-4 / EN IEC 61000-6-2 (24VDC Input Only) • EN 50155 (EN 50121-3-2 Only) • E-mark (Pending) | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN 61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 2 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V (**Compliant with the standard when utilizing shielded cable.) • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz | |
| Safety | UL, cUL, CB, IEC, EN 62368-1 | |
| Model No. | Description |
|---|---|
| DV-1100-R10 | 13/12th Gen. Intel® Core™ Series High Performance and Basic Function Rugged Embedded Computer |
| DV-1100 Embedded Computer x1 | Wall Mounting Kit x1 |
| CPU Installation Kit x1 | Power Terminal Block Connector x1 |
| External Fan Terminal Block Connector x1 | Remote Function Terminal Block Connector x 2 |
| Screw Pack x1 | M.2 Key B Type 3052 to Type 3042 Adapter Bracket x1 |
| Model No. | Description |
|---|---|
| CMI-DP01-R10 | CMI Module with 1x DisplayPort |
| CMI-HD03-R10 | CMI Module with 1x HDMI Port |
| CMI-COM06-R10 | CMI Module with 2x RS232/422/485 Ports (Support 5V/12V) |
| CMI-DIO06-R10 | CMI Module with 16DIO (8in/8out) |
| CFM-IGN04-R10 | CFM Module with Power Ignition Sensing Function, 12V/24V Selectable |
| UB1603-R10 | Universal Bracket with 2x DB9 Cutout |
| UB1606-R10 | Universal Bracket with DP Cutout |
| UB1608-R10 | Universal Bracket with HDMI Cutout |
| UB1618-R10 | Universal Bracket with DIO Cutout |
| DINRAIL-R10 | Diamond series DIN-RAIL Mount Kit |
| FAN-EX104 | External Fan with 4pin Terminal Block Plug and Mounting Bracket, Support Smart Fan |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI |
