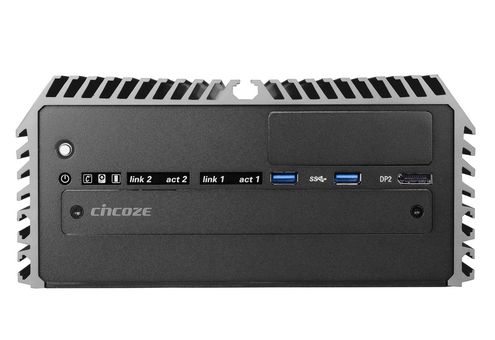

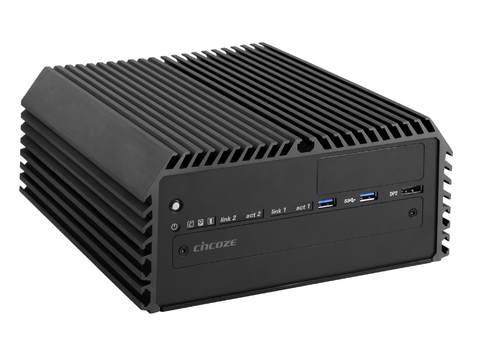

DS-1101
第7/6代Intel® Core™ i3 / i5 / i7 处理器， 高性能，扩展型和模块化的强固型嵌入式系统，带1个PCI/PCIe 扩展槽
产品特点
- 支持第7/6代Intel® Xeon®和Core™ i3 / i5 / i7 处理器（LGA1151）
- 2个DDR4 SO-DIMM 内存插槽，支持2133 / 2400MHz 64 GB
- 三重独立显示 （1个DVI-I, 2个DP）
- 1个2.5” SATA HDD / SSD热插拔抽取式托盘和1个内置2.5” SATA HDD/SSD托盘，支持RAID 0/1
- 1个PCI/PCIe 扩展槽，可安装扩展卡（最大长度：235 mm）
- 2个可用于I/O扩展的CMI插槽
- 1个CFM插槽，可扩展智能点火控制功能
- 支持3个全尺寸Mini-PCIe插槽，可安装无线通信和I/O 扩展
- 宽工作温度 -40°C 至 70°C
- EN50121-3-2 Certified/ LVD EN62368-1
- E-Mark (E13, No.10R-0514229) 车载应用认证
产品介绍
德承DS-1101是一款高性能的无风扇嵌入式计算机，采用7/6代Intel®Core™平台，支持多种台式机CPU（LGA1151） ，支持两个DDR4内存插槽，可达64GB，使DS-1101能够满足各种高端计算需求。DS-1101具有丰富的I/O接口、串口供电、电隔离串口、光隔离数字I/O、多网口、网口供电（POE）、M12接口、RAID 0/1、智能点火控制和0.2秒即时重启等功能。

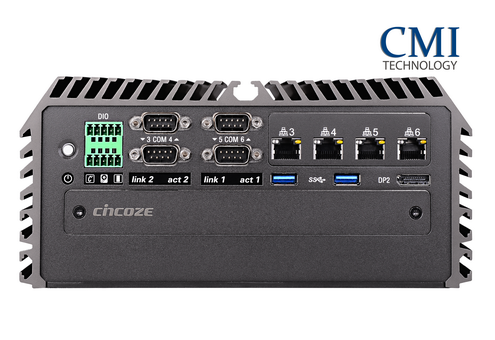

由于德承的CMI和CFM技术，您可根据具体需要使用我们现成的模块配置专属的DS-1101。此外，还支持1个PCI/PCIe扩展槽，具有不同的接口组合，用于扩展各种应用的扩展卡。DS-1101是一款坚固耐用的嵌入式系统，具有宽工作温度(-40°C ~ 70°C)，宽压直流电源输入(9V ~ 48V)，防震抗冲击能力强（5G/50G），高标准的工业保护，具有超级电容可免维护长效运行等特点。DS-1101适用于恶劣环境和关键应用场合的部署，无需现场人员的维护。
由于德承的CMI和CFM技术，您可根据具体需要使用我们现成的模块配置专属的DS-1101。此外，还支持1个PCI/PCIe扩展槽，具有不同的接口组合，用于扩展各种应用的扩展卡。DS-1101是一款坚固耐用的嵌入式系统，具有宽工作温度(-40°C ~ 70°C)，宽压直流电源输入(9V ~ 48V)，防震抗冲击能力强（5G/50G），高标准的工业保护，具有超级电容可免维护长效运行等特点。DS-1101适用于恶劣环境和关键应用场合的部署，无需现场人员的维护。
相关报导
详细规格

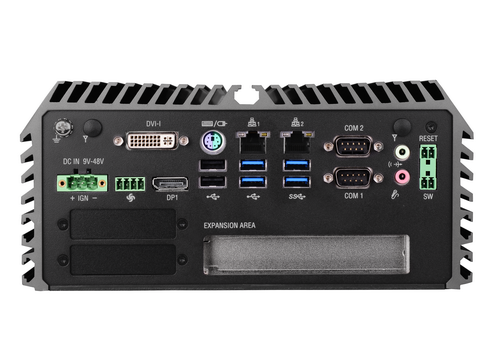

| Model Name | DS-1101 | |
|---|---|---|
| System | Processor | • 7th Generation Intel® CPU (Kaby Lake-S) - Intel® Core™ i7-7700T Processor (8M Cache, up to 3.8 GHz, 35W TDP) - Intel® Core™ i5-7500T Processor (6M Cache, up to 3.30 GHz, 35W TDP) - Intel® Core™ i3-7101TE Processor (3M Cache, 3.40 GHz, 35W TDP) - Intel® Celeron® G3930TE Processor (2M Cache, 2.70 GHz, 35W TDP) - Intel® Core™ i7-7700 Processor (8M Cache, up to 4.20 GHz, 65W TDP) - Intel® Core™ i5-7500 Processor (6M Cache, up to 3.80 GHz, 65W TDP) - Intel® Celeron® G3930E Processor (2M Cache, 2.90 GHz, 54W TDP) • 6th Generation Intel® CPU (Skylake-S) - Intel® Core™ i7-6700TE Processor (8M Cache, up to 3.40 GHz, 35W TDP) - Intel® Core™ i5-6500TE Processor (6M Cache, up to 3.30 GHz, 35W TDP) - Intel® Core™ i3-6100TE Processor (4M Cache, 2.70 GHz, 35W TDP) - Intel® Pentium® Processor G4400TE (3M Cache, 2.40 GHz, 35W TDP) - Intel® Celeron® Processor G3900TE (2M Cache, 2.30 GHz, 35W TDP) - Intel® Core™ i7-6700 Processor (8M Cache, up to 4.00 GHz, 65W TDP) - Intel® Core™ i5-6500 Processor (6M Cache, up to 3.60 GHz, 65W TDP) - Intel® Core™ i3-6100 Processor (3M Cache, 3.70 GHz, 51W TDP) - Intel® Pentium® Processor G4400 (3M Cache, 3.30 GHz, 54W TDP) - Intel® Celeron® Processor G3900 (2M Cache, 2.80 GHz, 51W TDP) |
| Chipset | Intel Q170 | |
| Memory | 2x DDR4 2133/2400 MHz SO-DIMM Sockets * Core I 7th Generation / Celeron Processor Supports Up to 2400MHz * Core I 6th Generation / Pentium / Celeron Processor Supports Up to 2133MHz Supports Un-buffered and Non-ECC Type Up to 64 GB | |
| Graphics | ．Integrated Intel® HD Graphics ．Three Independent Display | |
| Audio | Realtek ALC888-GR, High Definition Audio | |
| BIOS | AMI 16 Mbit SPI BIOS | |
| I/O Interface | DVI | 1x DVI-I connector, Up to 1920x1080@60Hz |
| DP | 2x DisplayPort Connector (4096 x 2304 @ 60Hz, According to CPU Specifications) * Verified maximum resolution: 3840x2160 | |
| LAN | 2x 10/100/1000 Mbps, RJ45 GbE1: Intel I219-LM GbE2: Intel I210 Support Wake On Lan, Teaming, Jumbo frame, IEEE 1588v2, PXE Optional Module ．4x 10/100/1000 Mbps, RJ45 Port ．4x 10/100/1000 Mbps, M12 Port | |
| PoE+ | Optional Module ．4x PoE+, Individual port 25.5W, RJ45 Port ．4x PoE+, Individual port 25.5W, M12 Port | |
| COM | 2x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9 Optional Module ．4x RS-232/422/485, DB9 Connector ．4x Electrical Isolated RS-232/422/485, DB9 Connector | |
| USB | ．6x USB 3.2 Gen1, Type-A ．2x USB 2.0, Type-A | |
| PS/2 Port | 1x PS/2, 6-pin mini-DIN Female Connector | |
| Isolated DIO | Optional Module ．8x Optical Isolated DIO(4DI, 4DO), 10 pin Terminal Block | |
| Line-Out | 1x Line-Out, Phone Jack 3.5mm | |
| Mic-In | 1x Mic-In, Phone Jack 3.5mm | |
| Power Button | 1x ATX Power On/Off Button | |
| AT/ATX Switch | 1x AT/ATX Mode Switch | |
| Clear CMOS Switch | 1x Clear CMOS Switch | |
| Remote Power On/Off Connector | 1x Remote Power On/Off Connector, 2-pin Terminal Block | |
| Remote Reset Connector | 1x Remote Reset Connector, 2-pin Terminal Block | |
| External FAN Connector | 1x External FAN Connector, 4-pin Terminal Block | |
| Storage | SSD/HDD | 2x 2.5" SATA HDD/SSD bay (Gen3) One Internal, One Front Accessable Support RAID 0/1, Hot Swap |
| mSATA | 3x mSATA (Shared by Mini-PCIe Socket) (Gen3) | |
| Expansion | PCI/ PCIe | 1x PCI/PCIe Expansion slot Optional Riser Card ．1x PCIex16 ．1x PCI |
| CFM (Control Function Module) Interface | 1x CFM Interface for CFM Modules | |
| CMI (Combine Multiple I/O) Interface | 2x CMI Interface for CMI Modules | |
| Mini PCI Express | 3x Full-size Mini PCIe Supports Wireless & I/O Expansion | |
| Universal I/O Bracket | 2x Universal I/O Bracket | |
| SIM Socket | 1x SIM Socket | |
| Antenna Holes | 2x Antenna Holes | |
| Other | Instant Reboot | Support 0.2sec |
| Power Ignition Sensing | Optional Module ．CFM with Delay Time Management and Selectable 12V/24V, Dip Switch | |
| SuperCap | SuperCap integrated for CMOS Battery Maintenance-free Operation | |
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset | |
| Power Requirement | Power Type | AT/ATX |
| Power Input Voltage | 9~48VDC | |
| Connector | 3-pin Terminal Block | |
| Power Adapter | Optional AC/DC Adapter ．AC/DC 24V/5A, 120W ．AC/DC 24V/9.2A, 220W | |
| Physical | Dimension (WxDxH) | 227 x 261 x 108 mm |
| Weight Information | 5.22 kg | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | |
| Mounting | Wall | |
| Unibody Design | Yes | |
| Fanless Design | Yes | |
| Jumper-less Design | Yes | |
| Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection | Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | 15A | |
| Operating Stystem | Windows | - 7th Generation Intel® CPU (Kaby Lake-S): Windows® 10 - 6th Generation Intel® CPU (Skylake-S): Windows® 10/ 8.1/ 7 |
| Linux | Supports by project | |
| Environment | Operating Temperature | 7th Generation Intel® CPU (Kaby Lake-S) - 35W TDP CPU: -40°C to 50°C - 51W~65W TDP CPU: -40°C to 45°C 6th Generation Intel® CPU (Skylake-S) - 35W TDP CPU: -40°C to 70°C - 51~65W TDP CPU: -40°C to 50°C (With extended temperature peripherals; Ambient with air flow; According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) |
| Storage Temperature | -40°C to 85°C | |
| Relative Humidity | 70°C @ 95% RH (non-Condensing) | |
| Shock | Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | |
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN 50155 (EN 50121-3-2 Only) • E-mark | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
| Safety | LVD IEC/EN 62368-1 | |
订购信息
| Model No. | Product Description |
|---|---|
| DS-1101-R20 | 7/6th Generation Intel Core Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer with 1x PCI/PCIe Expansion Slot |
| √ DS-1100 Embedded System x1 | √ DVI-I to VGA Adaptor |
| √ Power Terminal Block Connector x1 | √ Screw Pack x 1 |
| √ Remote Power On/Off Terminal Block Connector x2 | √ Wall Mounting Kit x1 |
| √ FAN Terminal Block Connector x1 | √ Heat Sink Pack x 1 |
| Model No. | Description |
|---|---|
| CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, Selectable 12V/24V (43 x 36 mm) |
| CFM-PoE03 | CFM Module with PoE Control Function for DS series, Individual Port 25.5W |
| CMI-CD100/FB21 | CMI Module with 4x RS-232/422/485 Serial Ports, 8x Optical Isolated DIO (4 in/4 out), 1x DS-1101 Front Bezel |
| CMI-ICD100/FB21 | CMI Module with 4x Electrical Isolated RS-232/422/485 Serial Ports, 8x Optical Isolated DIO (4 in/4 out), 1x DS-1101 Front Bezel |
| CMI-LAN01-R12/UB0612 | CMI Module with 4x Intel I210 GbE LAN, RJ45 Port / 1x Universal Bracket with 4x RJ45 Cutout for DS-1100 Series |
| CMI-M12LAN01-R12/UB0610 | CMI Module with M12 Connector, 4x Intel I210 GbE LAN / 1x Universal Bracket with 4x M12 Cutout for DS-1100 Series |
| CMI-XM12LAN01-R10/UB0630-R10 | CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports / Universal Bracket with 4x M12 X-Coded Cutout |
| FAN-EX101 | External Fan with 4pin Terminal Block Plug, Mounting Bracket, Support smart fan |
| MEC-LAN-M102-30/UB0311 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout |
| MEC-USB-M102-30/UB0314 | Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 30cm cable, 1xUniversal Bracket with 2x USB Cutout |
| MEC-COM-M212-DB9/UB0303 | Mini-PCIe Module with 2x COM Ports, 1x Standard DB9 Cable, 2x Universal Bracket each with 1x DB9 Cutout |
| PAH-101 | Power Adapter Holder for GST120A24 (200 x 78 x 46 mm) |
| PAH-201 | Power Adapter Holder for GST220A24 (243 x 95 x 57 mm) |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, Level VI |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, Level VI |
| RC-E16-01 | Riser Card with 1x PCIex16 Slot |
| RC-PI-01 | Riser Card with 1x PCI Slot |
