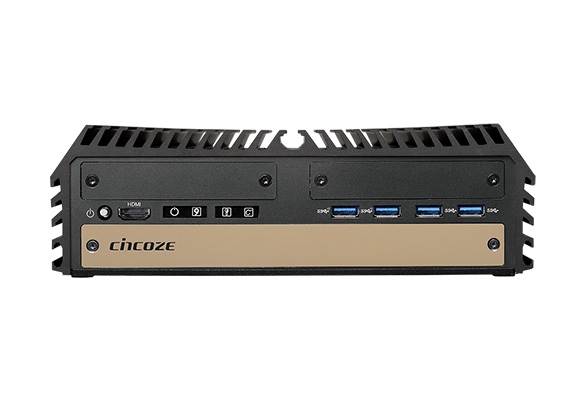

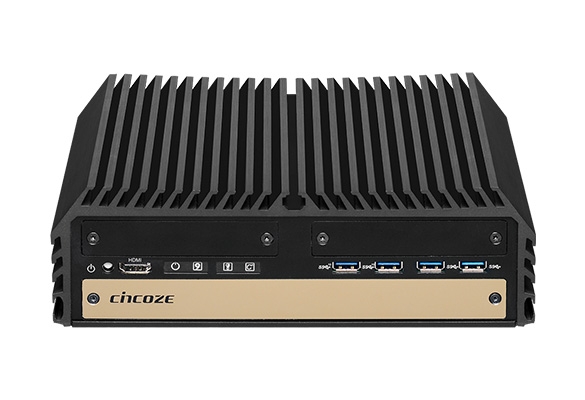

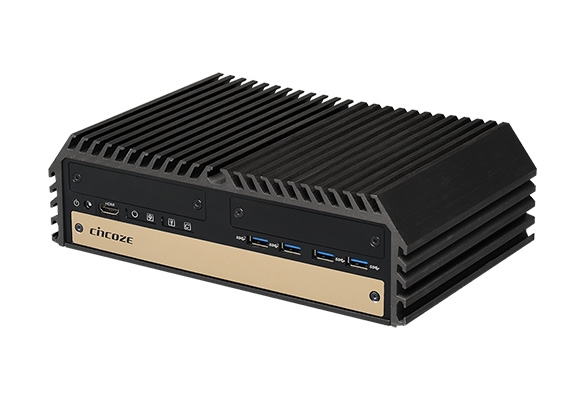

DX-1100
第9/8代Intel® Xeon®和Core™处理器，优越性能，紧凑型和模块化的强固型工作站
产品特点
- 支持第9/8代Intel® Xeon®和Core™ 8-core处理器
- 三重独立显示，具有4K / 2K UHD分辨率（HDMI / DP / DVI-I）
- 2个2.5” SATA HDD / SSD热插拔抽取式托盘，3个mSATA插槽
- 2个USB 3.1（10Gb/s），可实现高速数据传输
- 1个M.2 E Key插槽（CNVi），3个全尺寸Mini-PCIe插槽，1个SIM卡插槽
- 支持I / O扩展的CMI接口
- 支持POE +和智能点火控制（带可选配的CFM模块）
- 宽工作温度 -40°C 至 70°C
- E-Mark, LVD EN62368-1, EN50121-3-2
产品介绍
德承DX-1100是一款坚固耐用的工作站，专为满足高性能计算平台的需求而设计。基于Intel® 工作站等级C246芯片组，支持第9/8代Intel® Xeon / Core处理器（Coffee Lake R/S），支持多达8个处理内核以及高效显卡，可支持12*RJ45（独立千兆网口），支持8*USB（2*USB 3.1/6*USB 3.0），可满足8*POE或者8*M12（航空插头）的特殊应用。
尺寸大小仅为3.2升，适合紧凑的空间和高性能的需求，尽管尺寸非常紧凑，但DX-1100仍然提供灵活性的模块化I/O扩展，提供双热插拔2.5英寸HDD/SSD托盘，并具有RAID功能。得益于Cincoze的CFM技术（控制功能模块）, DX-1100可即时配置网口供电（POE）和智能点火控制功能，可应用于广泛的工业现场，例如：机器视觉、智能交通、自动化等领域。产品通过SGS国际认证机构获得CE、FCC、EN-50121-3-2、EN-60950-1、E-mark等专业认证。
相关报导
详细规格
| Model Name | DX-1100 | |
|---|---|---|
| System | Processor | • 9th Generation Intel® Coffee Lake-R S Series CPU: - Intel® Xeon® E-2278GEL 8 Cores Up to 3.9 GHz, TDP 35W - Intel® Core™ i7-9700E 8 Cores Up to 4.4 GHz, TDP 65W - Intel® Core™ i5-9500E 6 Cores Up to 4.2 GHz, TDP 65W - Intel® Core™ i3-9100E 4 Cores Up to 3.7 GHz, TDP 65W - Intel® Core™ i7-9700TE 8 Cores Up to 3.8 GHz, TDP 35W - Intel® Core™ i5-9500TE 6 Cores Up to 3.6 GHz, TDP 35W - Intel® Core™ i3-9100TE 4 Cores Up to 3.2 GHz, TDP 35W • 8th Generation Intel® Coffee Lake S Series CPU: - Intel® Xeon® E-2176G 6 Cores Up to 4.7 GHz - 12M Cache, TDP 80W - Intel® Xeon® E-2124G 4 Cores Up to 4.5 GHz - 8M Cache, TDP 71W - Intel® Core™ i7-8700 6 Cores Up to 4.6 GHz - 12M Cache, TDP 65W - Intel® Core™ i5-8500 6 Cores Up to 4.1 GHz - 9M Cache, TDP 65W - Intel® Core™ i3-8100 4 Cores 3.6 GHz - 6M Cache, TDP 65W - Intel® Core™ i7-8700T 6 Cores Up to 4.0 GHz - 12M Cache, TDP 35W - Intel® Core™ i5-8500T 6 Cores Up to 3.5 GHz - 9M Cache, TDP 35W - Intel® Core™ i3-8100T 4 Cores 3.1 GHz - 6M Cache, TDP 35W - Intel® Pentium® G5400 2 Cores 3.7 GHz - 4M Cache, TDP 58W - Intel® Pentium® G5400T 2 Cores 3.1 GHz - 4M Cache, TDP 35W - Intel® Celeron® G4900 2 Cores 3.1 GHz - 2M Cache, TDP 54W - Intel® Celeron® G4900T 2 Cores 2.9 GHz - 2M Cache, TDP 35W |
| Chipset | • Intel C246 | |
| BIOS | • AMI 32 MB BIOS | |
| Memory | • 2x DDR4-2666/2400 MHz SO-DIMM Sockets • Support up to 64 GB (Un-buffered and Non-ECC type) * i3/Pentium/Celeron: DDR4 2400 MHz | |
| Graphics | Graphics Engine | • Integrated Intel® UHD Graphics (Xeon: UHD P630; i7/i5/i3: UHD 630; Pentium/Celeron: UHD 610) • Supports Triple Independent Display (DVI-I/DisplayPort/HDMI) |
| Audio | Audio Codec | • Realtek® ALC888, High Definition Audio |
| I/O | Connector | • 1x DVI-I Connector (VGA: 1920 x1080 @ 60 Hz; DVI-D: 1920 x1200 @ 60 Hz) |
| DisplayPort | • 1x DisplayPort Connector (4096 x 2304 @ 60Hz, According to CPU Specifications) | |
| HDMI | • 1x HDMI Connector (3840 x 2160 @30Hz) | |
| LAN | • 2x GbE LAN (Support WoL, Teaming, Jumbo Frame, IEEE 1588v2 and PXE), RJ45 -GbE1: Intel® I219-LM -GbE2: Intel® I210 | |
| Flow Control | • 4x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9 | |
| USB | • 2x USB 3.2 Gen1 (Type-A) • 6x USB 3.0 (Type-A) | |
| Mic-in | • 1x Line-out & 1x Mic-in, Phone Jack 3.5mm | |
| ATX Power | • 1x ATX Power On/Off Button | |
| Reset Button | • 1x Reset Button | |
| Mode Switch | • 1x AT/ATX Mode Switch | |
| CMOS Switch | • 1x Clear CMOS Switch | |
| Remote Power On/Off Connector | • 1x Remote Power On/Off Connector, 2-pin Terminal Block | |
| Terminal Block | • 1x External FAN Connector, 4-pin Terminal Block (Supports Smart Fan by BIOS) | |
| Storage | HDD/SSD | • 2x 2.5" Front Accessable SATA HDD/SSD Bay (SATA 3.0) |
| mSATA | • 3x mSATA Socket (SATA 3.0, shared by Mini-PCIe socket) | |
| RAID | • Supports S/W RAID 0, 1, 5 & 10 | |
| Expansion | CFM (Control Function Module) Interface | • 1x Control Function Module (CFM) Interface |
| CMI (Combined Multiple I/O) Interface | • 2x Combined Multiple I/O (CMI) High Speed Interface • 1x Combined Multiple I/O (CMI) Low Speed Interface | |
| M.2 E Key Socket | • 1x M.2 2230 Socket (Key E), supports WiFi/Bluetooth module or BIOS Selectable Intel® CNVi (Integrated WiFi/Bluetooth) | |
| Mini-PCIe | • 3x Full-size Mini-PCIe Socket | |
| SIM Socket | • 1x SIM Socket | |
| Antenna Hole | • 3x Antenna Hole | |
| Other Function | Instant Reboot | • Supports Instant Reboot Technology (0.2 sec) |
| CMOS | • SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| Watchdog Timer | • Software Programmable Supports 256 Levels System Reset | |
| Power Requirement | Power Type | • AT/ATX |
| Power Input Voltage | • 9~48VDC | |
| Terminal Block | • 3-pin Terminal Block | |
| Power Adapter | • Power Adapter AC/DC 24V/5A 120W or 24V/9.2A 220W (Optional) | |
| Physical | Dimension ( W x D x H ) | • 242 x 173 x 77 mm |
| Weight | • 3.6 kg | |
| Construction | • Extruded Aluminum with Heavy Duty Metal | |
| Mounting | • Wall mount / VESA mount / DIN Rail Mount / Side Mount | |
| Physical Design | • Unibody Chassis • Fanless Design • Jumper-less Design • Cable less Design | |
| Protection | Reverse Power Input Protection | • Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | • 15A | |
| Operating System | Windows | • Windows® 10 |
| Linux | • Support by project | |
| Environment | Operating Temperature | • 35W TDP Processor: -40°C to 70°C • 54~65W TDP Processor: -40°C to 45°C • 71~80W TDP Processor: -40°C to 40°C *PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) *With extended temperature peripherals; Ambient with air flow *According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | • -40°C to 85°C | |
| Relative Humidity | • 95% RH @ 40°C (Non-condensing) | |
| Shock | • IEC60068-2-27: Operating, 50 Grms, Half-sine 11 ms Duration, w/ SSD | |
| Vibration | • IEC60068-2-64: Operating, 5 Grms, 5-500 Hz, 3 Axes, w/ SSD | |
| MTBF | • 407,391 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • E-mark | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
| Safety | • LVD IEC/EN 62368-1 | |
| Railway | • EMC: EN 50155: 2007 / AC: 2012 Clause 5.4, 5.5 - EN 50121-1: 2017 - EN 50121-3-2: 2016 • Simulated Long Life Test: EN 50155: 2017 Clause 13.4.11.2 - IEC 61373 Edition 2.0: 2010, Category 1, Class B-Body mounted: Operating • Vibration: EN 50155: 2017 Clause 13.4.11.4 - IEC 61373 Edition 2.0: 2010, Category 1, Class B-Body mounted: Operating • Shock: EN 50155: 2017 Clause 13.4.11.3 - IEC 61373 Edition 2.0: 2010, Category 1, Class B-Body mounted: Operating • Dry Heat Thermal Test EN 50155: 2017 Clause 13.4.5.3 - Thermal Test Cycle: B - Operating Temperature: OT4 (-40°C to 70°C), 85°C (for 10 minutes) | |
| Fire Protection | • EN 45545-2 | |
订购信息
| Model No. | Product Description |
|---|---|
| DX-1100-R10 | 9/8th Generation Intel® Xeon® and Core™ Processors, Extreme Performance, Compact and Modular Rugged Workstation |
| √ DX-1100 Rugged Workstation x1 | √ Power Terminal Block Connector x1 |
| √ CPU Heatsink Pack x1 | √ Remote Power On/Off Terminal Block Connector x1 |
| √ Screw Pack x1 | √ Fan Terminal Block Connector x1 |
| √ Wall Mounting Kit x1 | √ DVI-I to VGA Adaptor x1 |
| Model No. | Description |
|---|---|
| CFM-PoE01 | CFM Module with PoE Control Function, Individual Port 25.5W |
| CFM-IGN01 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable |
| CMI-LAN01-R12/UB0912 | CMI Module with 4x Intel I210 GbE LAN, RJ45 Port / 1x Universal Bracket with 4x RJ45 Cutout for DX Series |
| CMI-M12LAN01-R12/UB0910 | CMI Module with M12 Connector, 4x Intel GbE LAN / 1x Universal Bracket with 4x M12 Cutout for DX Series |
| CMI-XM12LAN01-R10/UB0930-R10 | CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports / Universal Bracket with 4x M12 X-Coded Cutout for DX Series |
| CMI-DIO01/UB0918 | CMI Module with 16DIO (8in 8out) / 1xUniversal Bracket with DIO Cutout for DX Series |
| CMI-COM01/UB0903 | CMI Module with 2x RS232/422/485 (Support 5V/12V) / 1x Universal Bracket with 2x DB9 Cutout for DX Series |
| MEC-COM-M212-TDB9/UB0903 | Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Thin DB9 Cable / 1x Universal Bracket with 2x DB9 Cutout for DX Series |
| MEC-COM-M334-TDB9/2xUB0903 | Mini-PCIe Module with 4x RS-232/422/485 Serial Ports, 2x Thin DB9 Cable / 2x Universal Bracket with 2x DB9 Cutout for DX Series |
| MEC-LAN-M102-30/UB0911 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout for DX Series |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W, with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W, with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI |
| FAN-EX101 | External Fan with 4pin Terminal Block Plug and Mounting Bracket, Support smart fan |
| SIDE-DX | DX Series side mount kit |
| DIN01 | DIN-RAIL Mount Kit, KMRH-K175 |
