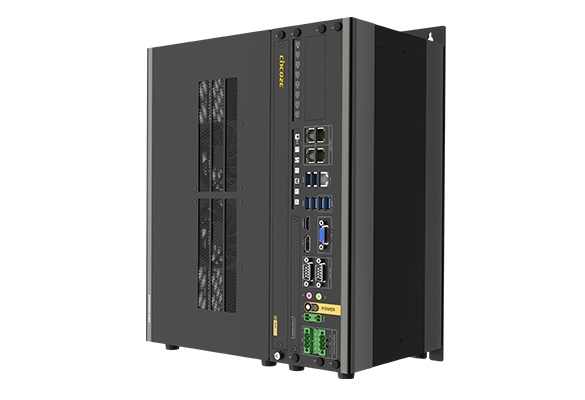

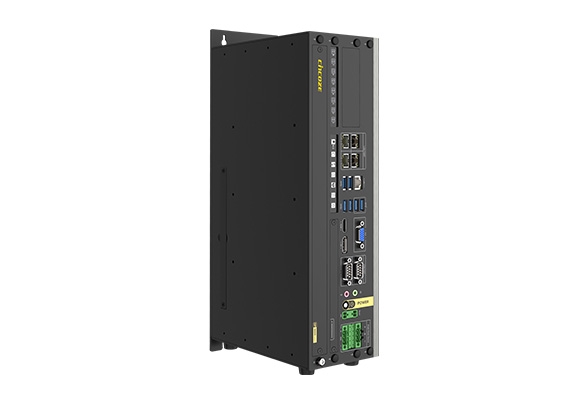

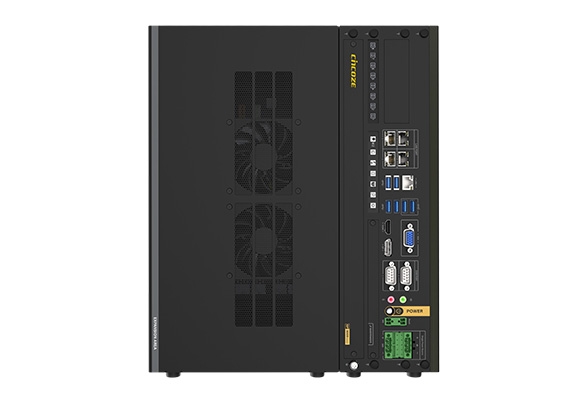

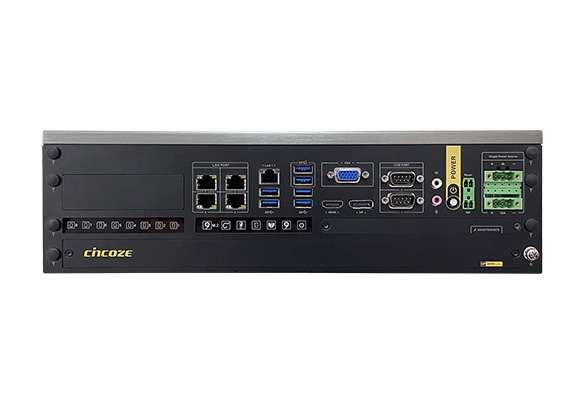

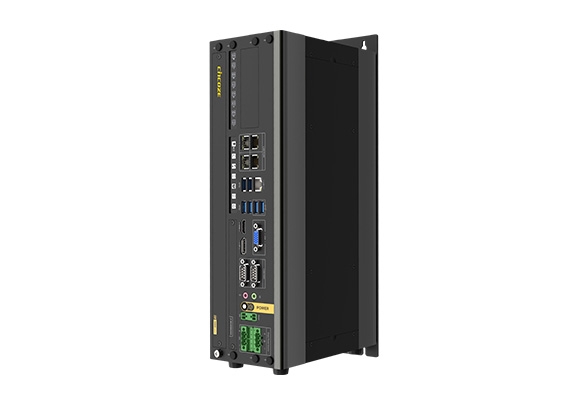

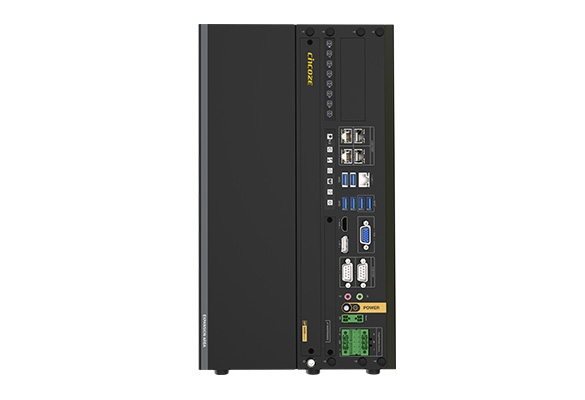

GP-3000
双全长 GPU 电脑
产品特点
- 支持第 9/8 代 Intel® Xeon® 和 Core™ 处理器 (35W / 65W / 80W)
- 支持 2 x DDR4 SO-DIMM 插槽，支持 ECC 及非 ECC 内存，可达 2666MHz，64GB
- 支持 4 x 2.5 英寸机械硬盘/固态硬盘 (高达15mm)，具有热插拔功能
- 1 x M.2 M Key插槽 (NVMe SSD)，1 x M.2 E Key插槽 (CNVi)
- 支持 2 个前置 SIM 卡插槽
- 支持 CMI 技术，可用于各种 I/O 扩展
- 支持 CFM 技术，可扩展智能点火控制和 PoE 功能
- 多种安装方式 (壁挂/桌上/支架/19”机架安装)
- 军工标准防冲击和振动认证
产品介绍

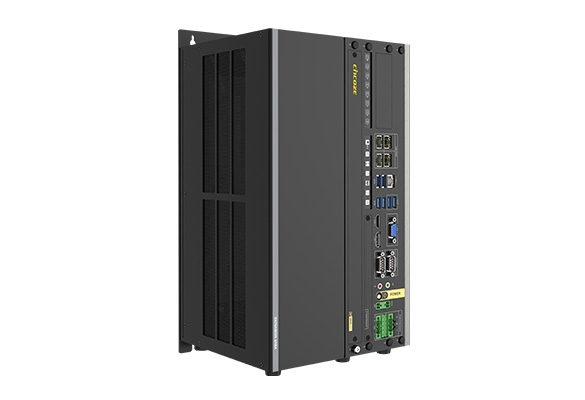

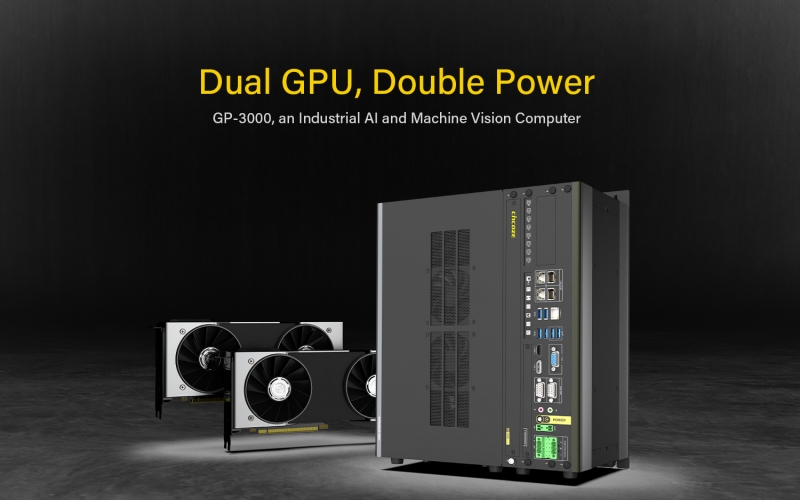

GP-3000 是一款可安装两张全长 GPU 显卡的高性能 GPU 电脑，系统总功耗高达 720W，可同时运行两张功耗 250W 的全长显卡，搭载 Intel® 工作站级的处理器，提供优越性能、快速数据存储、高速 I/O 连接，结合高质量的机械设计和工业级的强固设计 (符合 MIL-STD-810G 美军设备检验标准规范)，为人工智能的边缘运算带来了新的可能性和创新的变革。
机器视觉
- 视觉引导机器人
- 自动光学检测
- 人工智能
车载
- 自动驾驶
- 路况分析甄别
- 驾驶情况监测
智能交通
- 交通监控
- 环境监测
- 物件筛选
安全与监测
- 目标跟踪和检测
- 行为预测
- 视频分析
优越的
运算效能
——
GP-3000 搭载第 9 代 Intel® Xeon® / Core™ 处理器，第 9 代 Intel® 处理器比上一代快 34%，并支持 2 组 DDR4-2666 ECC/non-ECC SO-DIMM，内存容量高达 128GB，还可扩展至多两张 250W 的高阶 GPU 显卡。GP-3000 为人工智能、机器学习、机器视觉和大数据分析提供了惊人的性能，是当今最强大的工业人工智能和机器视觉计算机之一。
可扩展和升级的
GPU 扩展盒
——
专属的 GEB (GPU 扩展盒) 可弹性灵活的扩展至多两张且长度为 328mm 的高阶 GPU 全长卡，并内建多个 PCIe 插槽，可搭配各类高速 I/O 卡或影像撷取卡，以实践各种不同的应用。对于未来的升级性，无论是搭载更高阶的 GPU 显卡或是扩展卡数量的向上叠加，也只需透过换置 GEB (GPU 卡扩展盒) 即可轻松实现，是市面上支持多张 GPU 全长卡且具备弹性扩展的理想机种。
Patent No. I779496
720W 的
系统总功耗
——
总功耗为 720W，支持 9V~48V 的宽压直流电源输入，适用于高端 GPU 的运算。可为其专属的 GEB(GPU 扩展盒) 提供高达500W 的功率，安装两张 250W 的高阶 GPU 显卡也能运行顺畅无阻。
增强散热能力的
智能冷却设计
——
为了解决高功耗和散热的难点，GP-3000 在铝挤型结构的两侧和 GEB (GPU 扩展盒) 机箱的四周，均有设计独立的外部智能风扇组件，在 CPU 和 GPU 满载的情况下，仍可在极端条件下有效地散热。
Patent No. I778522
丰富的 I/O 接口及
定制化的扩展功能
——
搭配德承专属的 CMI/CFM 模块，可额外增加的 I/O 接口或其他扩展的功能，如 8x GbE LAN/POE、6x USB 3.2 和 2x 10 GbE LAN。支持 1 个 M.2 M key 的高速 NVMe SSD 存储，在前面板的维护区还有 4 个可支持热插拔的 2.5” HDD/SSD 硬盘支架，可满足机器视觉应用对于大容量储存的要求，也提升了现场端硬盘抽取与更换的便利性。
强固的设计
使运行更稳定可靠
——
通过美军设备检验标准 (MIL-STD-810G) 的认证，车载应用的 E-mark 认证和铁路车辆环境的 EN50155 (仅 EN 50121-3-2) 轨道交通认证，采用 9-48V 直流宽压输出，-40°C 到 70°C 的宽温设计，支持多种安装方式 (标准安装/壁挂安装/19寸机架式安装)，可承受极端的冷热温度，冲击和振动，以及高电磁辐射，让运用范围更加广泛，足以涵盖轨道交通、车载及其他特殊严苛环境的多种应用。
视频
相关报导
![[ 媒体评测 ] Cincoze GP-3000 In-Depth Review by CNX SOFTWARE](data/images/202108/1629355222695374982.jpg)
![[ 媒体评测 ] GP-3000. Very high performance modular and expandable GPU computer.](data/images/202106/1623576346017985969.jpg)
![[ 专栏文章 ] The Ultimate Guide to GPU Computers](data/images/202105/1621994778901362771.jpg)
详细规格
| Model Name | GP-3000 | |
|---|---|---|
| System | Processor | • 9th Generation Intel Coffee Lake-R S Series CPU: - Intel® Xeon® E-2278GE 8 Cores Up to 4.7 GHz, TDP 80W - Intel® Xeon® E-2278GEL 8 Cores Up to 3.9 GHz, TDP 35W - Intel® Core™ i7-9700E 8 Cores Up to 4.4 GHz, TDP 65W - Intel® Core™ i5-9500E 6 Cores Up to 4.2 GHz, TDP 65W - Intel® Core™ i3-9100E 4 Cores Up to 3.7 GHz, TDP 65W - Intel® Core™ i7-9700TE 8 Cores Up to 3.8 GHz, TDP 35W - Intel® Core™ i5-9500TE 6 Cores Up to 3.6 GHz, TDP 35W - Intel® Core™ i3-9100TE 4 Cores Up to 3.2 GHz, TDP 35W • 8th Generation Intel Coffee Lake S Series CPU: - Intel® Xeon® E-2176G 6 Cores up to 4.7 GHz, TDP 80W - Intel® Xeon® E-2124G 4 Cores up to 4.5 GHz, TDP 71W - Intel® Core™ i7-8700 6 Cores up to 4.6 GHz, TDP 65W - Intel® Core™ i5-8500 6 Cores, up to 4.1 GHz, TDP 65W - Intel® Core™ i3-8100 4 Cores 3.6 GHz, TDP 65W - Intel® Core™ i7-8700T 6 Cores up to 4.0 GHz, TDP 35W - Intel® Core™ i5-8500T 6 Cores up to 3.5 GHz, TDP 35W - Intel® Core™ i3-8100T 4 Cores 3.1 GHz, TDP 35W - Intel® Pentium® G5400 2 Cores 3.7 GHz, TDP 58W - Intel® Pentium® G5400T 2 Cores 3.1 GHz, TDP 35W - Intel® Celeron® G4900 2 Cores 3.1 GHz, TDP 54W - Intel® Celeron® G4900T 2 Cores 2.9 GHz, TDP 35W |
| Chipset | Intel C246 | |
| Memory | 2x DDR4 2666/2400 MHz SO-DIMM Sockets * Xeon/i7/i5: Up to DDR4 2666MHz * i3/Pentium/Celeron: Up to DDR4 2400MHz Supports ECC / non-ECC Type Up to 64GB | |
| Graphics | • Integrated Intel® UHD Graphics (Xeon/i7/i5/i3: UHD 630; Pentium/Celeron: UHD 610) • Supports Triple Independent Display (VGA/DisplayPort/HDMI) | |
| Audio | Realtek® ALC888, High Definition Audio | |
| BIOS | AMI BIOS | |
| I/O Interface | HDMI | 1x HDMI Connector (4096 x 2160 @ 30Hz) |
| DP | 1x DisplayPort Connector (4096 x 2304 @ 60Hz, According to CPU Specifications) * Verified maximum resolution: 3840x2160 | |
| VGA | 1x VGA Connector (1920 x 1200 @30Hz ) | |
| LAN | 5x GbE LAN, RJ45 - GbE1: Intel® I219-LM - GbE2: Intel® I210 - GbE3: Intel® I210 - GbE4: Intel® I210 - GbE5: Intel® I210 | |
| COM | 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 | |
| USB | 2x 10Gbps USB 3.2 Gen2, Type A 4x 5Gbps USB 3.2 Gen1, Type A | |
| Line-Out | 1x Line-Out, Phone Jack 3.5mm | |
| Mic-In | 1x Mic-In, Phone Jack 3.5mm | |
| Power Button | 1x ATX Power On/Off Button | |
| Remote Power On/Off | 1x Remote Power On/Off, 2-pin Terminal Block | |
| Remote Reset | 1x Remote Reset, 2-pin Terminal Block | |
| AT/ATX Switch | 1x AT/ATX Mode Switch | |
| Reset Button | 1x Reset Button | |
| Clear CMOS Switch | 1x Clear CMOS Switch | |
| Storage | SSD/HDD | 4x 2.5" Front Accessible SATA HDD/SSD Bay (SATA 3.0), Supports Up to 15mm in Height |
| M.2 | 1x M.2 Key M 2280 Socket, Supports PCIe x4 NVMe SSD or SATA SSD (Gen3) | |
| RAID | Supports RAID 0 / 1 / 5 / 10 | |
| Expansion | PCIe | Optional GPU Expansion Box - 1 x PCIe x 4 + 1 x PCIe x 16 - 2 x PCIe x 16 (8 Lanes) + 1 x PCIe x 1 + 1 x PCIe x 4 |
| Mini PCI Express | 2x Full-size Mini-PCIe Socket | |
| M.2 | 1x M.2 Key E 2230 Socket, Supports Intel CNVi Module 1x M.2 Key M 2280 Socket, Support NVMe/SATA SSD | |
| Universal Bracket | 1x Universal Bracket | |
| SIM Socket | 2x SIM Socket | |
| Antenna Holes | 7x Antenna Holes | |
| Cincoze Modular Technology | CMI Interface | 1x High Speed CMI (Combined Multiple I/O) Interface 1x Low Speed CMI (Combined Multiple I/O) Interface |
| CMI Module | Optional Modules: - 4x GbE LAN, RJ45 - 4x GbE LAN, M12 A-Coded - 2x 10GbE LAN, RJ45 - 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 - 16x Optical Isolated DIO(8DI, 8DO), 2x 10 Pin Terminal Block | |
| CFM Interface | 1x CFM(Control Function Module) IGN Interface 1x CFM(Control Function Module) PoE Interface | |
| CFM Module | Optional Module • 1x Power Ignition Sensing Module with Delay Time Management and Selectable 12V/24V • 1x PoE Function Module Supports Up to 4x PoE+ with Individual port 25.5W | |
| MEC Module | Optional Modules: • 2x 5Gbps USB 3.2 Gen1, Type A | |
| Other | Fan | 2x Fan Kits ( Air-flow isolated from the electronics ) |
| Instant Reboot | Support 0.2sec Instant Reboot Technology | |
| Super Cap | SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset | |
| Power Requirement | Power Type | AT/ATX |
| Power Input Voltage | 9-48 VDC, Single Power Source | |
| Total Power Budget | 720W (with GEB-3601-R10) | |
| Connector | 2x 3-pin Terminal Block, Each Terminal Block Current Limitation is 15A - Dual power connect must be used at the same time due to 15A current limitation at each power connector. | |
| Power Supply | Optional AC/DC or DC/DC 24V 480W Power Supply Optional AC/DC or DC/DC 24V 1000W Power Supply | |
| Physical | Dimension ( W x D x H ) | 105 x 195 x 370 mm |
| Weight Information | 8kg | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | |
| Mounting | Wall Mount / Desktop Mount / 19" Rack Mount / Face-up Mount | |
| Unibody Design | Yes | |
| Jumper-less Design | Yes | |
| Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | 30A | |
| Operating System | Windows | Windows® 10 |
| Linux | Support by project | |
| Environment | Operating Temperature | 35W CPU: -40°C to 70°C 65W CPU: -40°C to 60°C 80W CPU: -40°C to 50°C * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 * 100% CPU and without thermal throttling |
| Storage Temperature | -40°C to 85°C | |
| Relative Humidity | 95% RH @ 70°C (Non-condensing) | |
| Shock | MIL-STD-810G | |
| Vibration | MIL-STD-810G | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN 50155 (EN 50121-3-2 Only) • E-mark | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
| Safety | LVD IEC/EN 62368-1 | |
| MTBF | 441,283 hr | |
| Fire Protection | EN 45545-2 | |
订购信息
| Model No. | Product Description |
|---|---|
| GP-3000-R10 | 9th/8th Gen Intel® Xeon®/Core™ GPU Computer, Supports Dual Full-length GPU Expansion Up to 500W |
| √ Wall Mount Bracket | √ Rubber Foot Kit x 1 |
| √ Desktop Mount Kit x 1 | √ Power Terminal Block Connector x 2 |
| √ CPU Heatsink and Thermal Pad Kit | √ Remote Function Terminal Block Connector x 2 |
| √ Screw Pack x4 |
| Model No. | Description |
|---|---|
| GEB-3301-R10 | GPU Expansion Box with 1x PCIex16 and 1x PCIe x4 Slots for GP-3000 Series |
| GEB-3601-R10 | GPU Expansion Box with 2x PCIe x 16 (Signal PCIe x 8), 1x PCIe x 4 and 1 x PCIe x 1 Slots for GP-3000 Series |
| Model No. | Description |
|---|---|
| CMI-LAN01-R12/UB1412 | CMI Module with 4x Intel I210 GbE LAN, RJ45 Port / 1x Universal Bracket with 4x RJ45 Cutout for GP-3000 Series |
| CMI-M12LAN01-R12/UB1410 | CMI Module with M12 A-Coded Connector, 4x Intel I210 GbE LAN / 1x Universal Bracket with 4x M12 Cutout for GP-3000 Series |
| CMI-XM12LAN01-R10/UB1410 | CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports / Universal Bracket with 4x M12 Cutout for GP-3000 Series |
| CMI-10GLAN02-R10/UB1428 | CMI Module with 2x Intel X550 10GbE LAN, RJ45 Port / 1x Universal Bracket with 2x RJ45 Cutout for GP-3000 Series |
| CMI-COM04-R10/UB1403 | CMI Module with 2x RS232/422/485 Ports (Support 5V/12V) / 1x Universal Bracket with 2x DB9 Cutout for GP-3000 Series |
| CMI-DIO04-R11/UB1418 | CMI Module with 16DIO (8in 8out) / 1x Universal Bracket with DIO Cutout for GP-3000 Series |
| MEC-USB-M102-30/UB1414 | Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x 30cm cable / 1 x Universal Bracket with 2x USB Cutout for GP-3000 Series |
| Model No. | Description |
|---|---|
| CFM-PoE07-R10 | CFM Module with PoE Function, Individual Port 25.5W (Enable PoE function for CMI-LAN01-R12, CMI-M12LAN01-R12, CMI-XM12LAN01-R10) |
| CFM-PoE01 | CFM Module with PoE Function, Individual Port 25.5W (Enable PoE function for onboard LAN 2 to LAN 5) |
| CFM-IGN03-R10 | CFM Module with Power Ignition Sensing Function, 12V/24V Selectable |
| Model No. | Description |
|---|---|
| RM01-R10 | 19" Rack Mount Kit for GP-3000 |
| RM02-R10 | 19" Rack Mount Kit for GP-3000/GEB-33 Series |
| RM03-R10 | 19" Rack Mount Kit for GP-3000/GEB-36 Series |
| Model No. | Description |
|---|---|
| SDR-480-24 | DIN Rail Power Supply 480W 24V, SDR-480-24 |
| HEP-1000-24 | Power Supply 1000W 24V, HEP-1000-24 |
| US Power Cord | 1.8M US Power Cord, Stripped and Tinned End with Tube |
| EU Power Cord | 1.8M EU Power Cord, Stripped and Tinned End with Tube |
| Power Cable | 1M Power Cable with 3-Pin Terminal Block Plug, Stripped and Tinned End with Tube |
