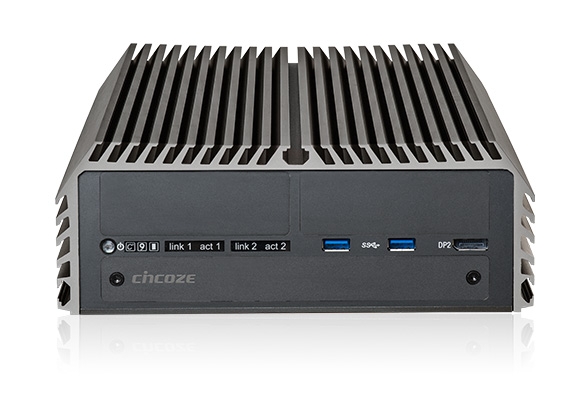

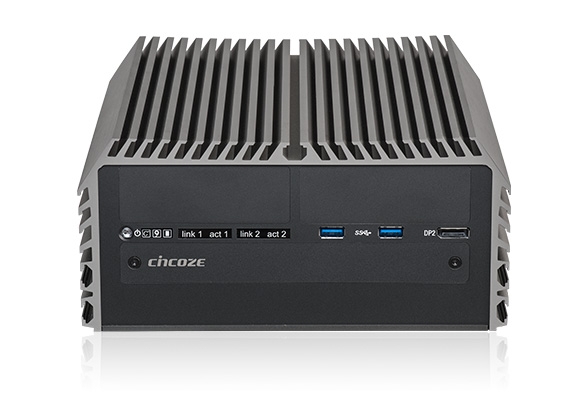

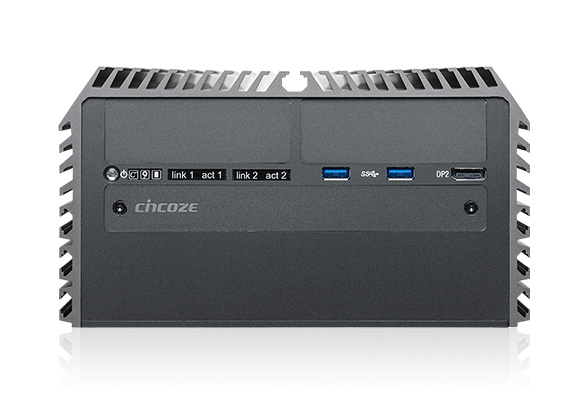

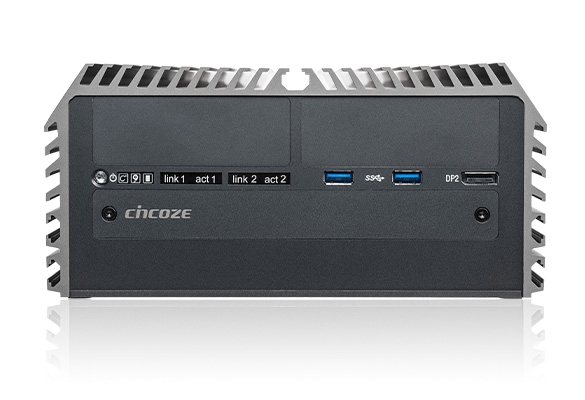

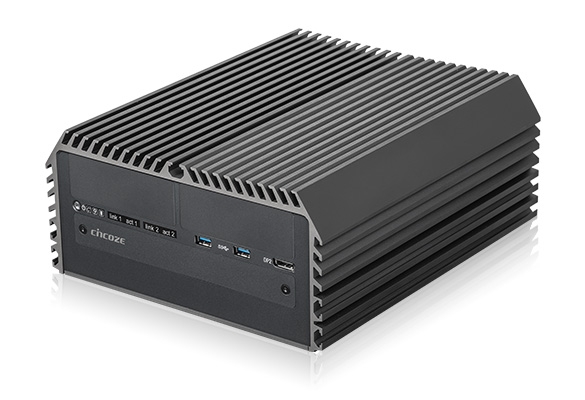

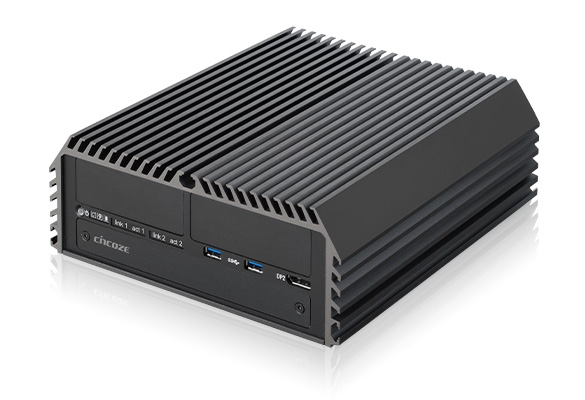

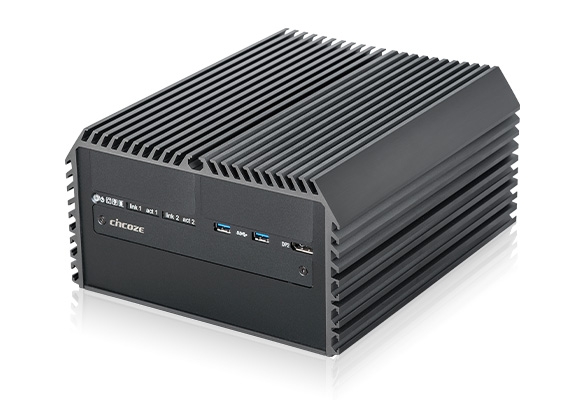

DS-1200 Series
第九/第八代 Intel® Core™ 系列处理器，高性能、可扩展且模块化的坚固型嵌入式计算机和 PCIe 可扩展坚固型嵌入式计算机，支持最多 2 个 PCI/PCIe 扩展插槽。
产品特点
- 支持第9/8代Intel® Core™ / Pentium® / Celeron® 8 Cores 35W/65W处理器（LGA 1151）
- 2个DDR4 SO-DIMM内存插槽，支持 2666MHz 64GB
- 三重独立显示：1个 DVI-I 和2个 DP（4K 分辨率）
- 1个M.2 2280 M Key插槽，自动检测PCIex4 NVMe SSD 或 SATA Gen3 SSD
- 2个前面板可抽取式SIM卡插槽，用于信号冗余
- 最多 2 个 PCI/PCIe 扩展槽
- 4个可用于I/O扩展的CMI插槽
- 1个CFM插槽，可扩展智能点火控制功能
- 宽工作温度 -40°C 至 70°C
- EN50121-3-2 / LVD EN62368-1
产品介绍
德承 DS-1200 系列是一款高性能的无风扇嵌入式计算机，采用第 9/8 代 Intel®Core™ 平台 (Coffee Lake-S)，提供多达 8 个核心来满足各种高端计算需求。DS-1200 系列提供丰富的 I/O，如 1 个 PS/2、1 个音频输入输出、2 个 RS-232/422/485 串口、2 个 Intel® GbE 网口、2 个 USB 3.1 (Gen2)、4 个 USB 3.0、2 个 USB 2.0 并具备三重独立显示。在内存和存储方面，DS-1200 系列可配备多达 32GB 的 DDR4-2666 SO-DIMM 内存，2 个 2.5 寸 SATA III 硬盘，3 个 mSATA SSD 和 1 个 M.2 2280 NVMe SSD，满足高性能存储需求。
基于德承独特的 CMI 和 CFM 技术，可通过多网口（RJ45/M12）、网口供电（POE）、串口、光学隔离数字 I/O 和智能点火控制功能等随时可用的模块扩展 I/O 和功能，用户可使用各种现成的模块根据自己的具体需求来配置系统。此外，DS-1200 系列具有最多 2 个 PCI(e) 扩展槽，可安装多功能扩展卡。具有宽工作温度 (-40°C ~ 70°C)，宽压直流电源输入 (9V ~ 48V)，防震抗冲击能力强（5G/50G），高标准的工业保护（OVP、OCP、ESD）等特点。DS-1200 系列设计用于在恶劣条件下运行，通过 EN50121-3-2 和 EN60950-1 等严格的测试，可满足各种车载应用。
基于德承独特的 CMI 和 CFM 技术，可通过多网口（RJ45/M12）、网口供电（POE）、串口、光学隔离数字 I/O 和智能点火控制功能等随时可用的模块扩展 I/O 和功能，用户可使用各种现成的模块根据自己的具体需求来配置系统。此外，DS-1200 系列具有最多 2 个 PCI(e) 扩展槽，可安装多功能扩展卡。具有宽工作温度 (-40°C ~ 70°C)，宽压直流电源输入 (9V ~ 48V)，防震抗冲击能力强（5G/50G），高标准的工业保护（OVP、OCP、ESD）等特点。DS-1200 系列设计用于在恶劣条件下运行，通过 EN50121-3-2 和 EN60950-1 等严格的测试，可满足各种车载应用。
相关报导
详细规格

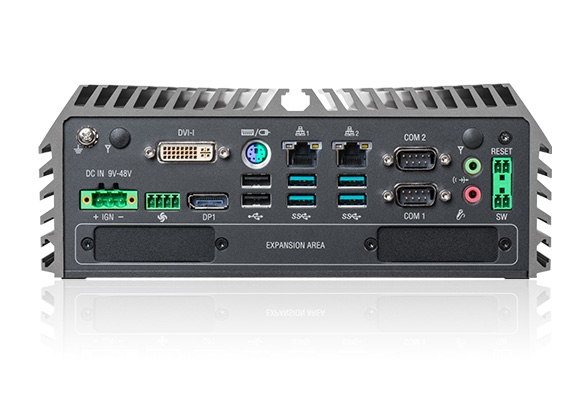

| Model Name | DS-1200 | DS-1201 | DS-1202 | |
|---|---|---|---|---|
| System | Processor | • 9th Generation Intel® Coffee Lake-R S Series CPU: - Intel® Core™ i7-9700E 8 Cores Up to 4.4 GHz, TDP 65W - Intel® Core™ i5-9500E 6 Cores Up to 4.2 GHz, TDP 65W - Intel® Core™ i3-9100E 4 Cores Up to 3.7 GHz, TDP 65W - Intel® Core™ i7-9700TE 8 Cores Up to 3.8 GHz, TDP 35W - Intel® Core™ i5-9500TE 6 Cores Up to 3.6 GHz, TDP 35W - Intel® Core™ i3-9100TE 4 Cores Up to 3.2 GHz, TDP 35W • 8th Generation Intel® Coffee Lake S Series CPU: - Intel® Core™ i7-8700 6 Cores Up to 4.6 GHz - 12M Cache, TDP 65W - Intel® Core™ i5-8500 6 Cores Up to 4.1 GHz - 9M Cache, TDP 65W - Intel® Core™ i3-8100 4 Cores 3.6 GHz - 6M Cache, TDP 65W - Intel® Core™ i7-8700T 6 Cores Up to 4.0 GHz - 12M Cache, TDP 35W - Intel® Core™ i5-8500T 6 Cores Up to 3.5 GHz - 9M Cache, TDP 35W - Intel® Core™ i3-8100T 4 Cores 3.1 GHz - 6M Cache, TDP 35W - Intel® Pentium® G5400 2 Cores 3.7 GHz - 4M Cache, TDP 58W - Intel® Pentium® G5400T 2 Cores 3.1 GHz - 4M Cache, TDP 35W - Intel® Celeron® G4900 2 Cores 3.1 GHz - 2M Cache, TDP 54W - Intel® Celeron® G4900T 2 Cores 2.9 GHz - 2M Cache, TDP 35W | ||
| Chipset | Intel Q370 | |||
| BIOS | AMI 32MB SPI BIOS | |||
| Memory | • 2x DDR4 2400/2666 MHz SO-DIMM Sockets • Supports Un-buffered and Non-ECC Type Up to 64 GB | |||
| Graphics | Graphics Engine | Integrated Intel® UHD Graphics 630: Core™ i7/i5/i3 Integrated Intel® UHD Graphics 610: Pentium® /Celeron® Supports Triple Independent Display (1x DVI-I, 2x DisplayPort) | ||
| Audio | Audio Codec | Realtek® ALC888 High Definition Audio | ||
| I/O Interface | Connector | •1x DVI-I (DVI-D: 1920 x 1200 @60Hz / VGA: 1920 x 1080 @60Hz) | ||
| DisplayPort | •2x DisplayPort Connector (4096 x 2304 @ 60Hz, According to CPU Specifications) * Verified maximum resolution: 3840x2160. | |||
| LAN | •2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 -GbE1: Intel® I210 -GbE2: Intel® I219-LM | |||
| COM | •2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9 | |||
| USB | •2x USB 3.2 Gen2 (TypeA) •4x USB 3.2 Gen1 (TypeA) •2x USB 2.0 (Type A) | |||
| mini-DIN | •1x PS/2, 6-pin mini-DIN Female Connector | |||
| Mic-in | •1x Line-out & 1x Mic-in, Phone Jack 3.5mm | |||
| Power On/Off Switch Button | •1x ATX Power On/Off Switch | |||
| Mode Switch | •1x AT/ATX Mode Switch | |||
| CMOS Switch | •1x Clear CMOS Switch | |||
| Remote Power On/Off Connector | •1x Remote Power On/Off Connector, 2-Pin Terminal Block | |||
| Terminal Block | •1x Remote Reset Connector, 2-pin Terminal Block •1x External Fan Connector, 4-Pin Terminal Block (Supports smart fan function) | |||
| Storage | SSD/HDD | • 2x 2.5" SATA HDD/SSD bay (Gen3), 1x Internal, 1x Front Accessable • Supports RAID 0/1 | ||
| mSATA | 3x mSATA (shared by Mini-PCIe socket) (Gen3), BIOS Selectable | |||
| M.2 | 1x M.2 Key M 2280 Socket, Supports PCIe x4 NVMe SSD or SATA SSD (Gen3) | |||
| Expansion | Mini PCIe | 3x Full-size Mini-PCIe Socket | ||
| SIM Socket | 2x SIM Socket | |||
| CFM (Control Function Module) Interface | 1x CFM (Control Function Module) Interface | |||
| CMI (Combine Multiple I/O) Interface | 2x CMI (Combined Multiple I/O) High Speed Interface 2x CMI (Combined Multiple I/O) Low Speed Interface | |||
| Antenna | 2x Antenna Holes | |||

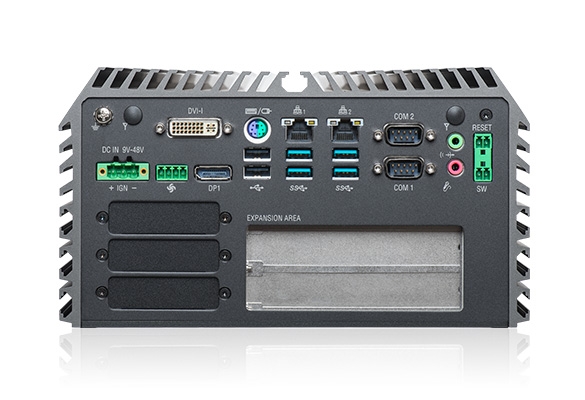

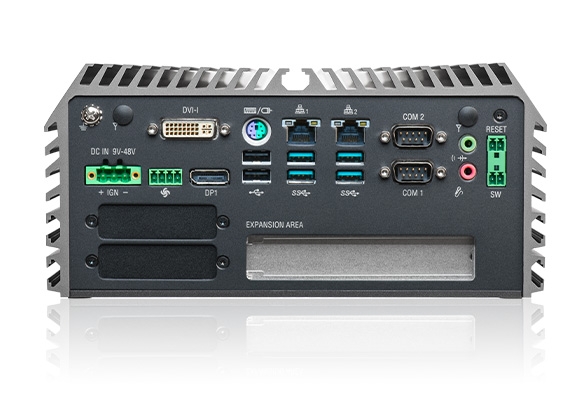

| PCI/ PCIe Expansion | 1x PCI/PCIe Expansion slot (with Optional Riser Card) * Supports maximum dimensions of add-on card (H x L) : 111 x 235 mm | 2x PCI/PCIe Expansion slot (with Optional Riser Card) * Supports maximum dimensions of add-on card (H x L) : 111 x 235 mm | ||
| Other Function | Instant Reboot | Support Instant Reboot Technology (0.2 sec) | ||
| CMOS | SuperCap Integrated for CMOS Battery Maintenance-free Operation | |||
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset | |||
| Power Requirement | Power Type | •AT / ATX | ||
| Power Supply Voltage | •9~48VDC | |||
| Terminal | •1x 3-Pin Terminal Block | |||
| Power Adapter | •Power Adapter AC/DC 24V/5A 120W or 24V/9.2A 220W (Optional) | |||
| Physical | Dimension ( W x D x H ) | •227 x 261 x 88 mm | •227 x 261 x 108 mm | •227 x 261 x 128 mm |
| Weight | •4.3 kg | •4.92 kg | •5.14 kg | |
| Construction | •Extruded Aluminum with Heavy Duty Metal | |||
| Mounting | •Wall Mounting | |||
| Physical Design | •Unibody Design •Fanless Design •Jumper-less Design | |||
| Protection | Reverse Power Input Protection | Yes | ||
| Over Voltage Protection | Protection Range: 51~58V Protection Type: shut down operating voltage, re-power on at the preset level to recover | |||
| Over Current Protection | 15A | |||
| Operating System | Windows | Windows® 10 | ||
| Linux | Supports by project | |||
| Environment | Operating Temperature | • 35W TDP Processor: -40°C to 70°C • 51~65W TDP Processor: -40°C to 45°C * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 | ||
| Storage Temperature | -40°C to 85°C | |||
| Relative Humidity | 95%RH @ 70°C (non-Condensing) | |||
| Shock | Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | |||
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | |||
| MTBF | 396,565 Hours | |||
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN 50155 (EN 50121-3-2 Only) | |||
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |||
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |||
| Safety | LVD IEC/EN 62368-1 | |||
订购信息
| Model No. | Product Description |
|---|---|
| DS-1200-R10 | 9/8th Generation Intel® Core™ Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer |
| DS-1201-R10 | 9/8th Generation Intel® Core™ Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer with 1x PCI/PCIe Expansion Slot |
| DS-1202-R10 | 9/8th Generation Intel® Core™ Series Processors, High Performance, Expandable, and Modular Rugged Embedded Computer with 2x PCI/PCIe Expansion Slots |
| √ DS-1200 Series Embedded System x 1 | √ Power Terminal Block Connector x 1 |
| √ Heat Sink Pack x 1 | √ Remote Power On/Off Terminal Block Connector x 1 |
| √ Screw Pack x 1 | √ Remote Power Reset Terminal Block Connector x 1 |
| √ Wall Mount Kit x1 | √ Fan Terminal Block Connector x 1 |
| √ DVI-I to VGA Adaptor |
| Model No. | Description |
|---|---|
| CFM-PoE03 | CFM Module with PoE Function, Individual Port 25.5W |
| CFM-IGN101 | CFM Module with Power Ignition Sensing Function, 12V/24V Selectable |
| CMI-LAN01-R12/UB1012 | CMI Module with 4x Intel I210 GbE LAN, RJ45 Port / 1x Universal Bracket with 4x RJ45 Cutout |
| CMI-M12LAN01-R12/UB1010 | CMI Module with M12 Connector, 4x Intel GbE LAN / 1x Universal Bracket with 4x M12 Cutout |
| CMI-XM12LAN01-R10/UB1030-R10 | CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports / Universal Bracket with 4x M12 X-Coded Cutout |
| CMI-DIO02/UB1018 | CMI Module with 16DIO (8in 8out) / 1x Universal Bracket with DIO Cutout |
| CMI-COM02/UB1004 | CMI Module with 4x RS232/422/485 Ports (Support 5V/12V) / 1x Universal Bracket with 4x DB9 Cutout |
| CMI-ICOM01/UB1004 | CMI Module with 4x Isolated RS232 Ports / 1x Universal Bracket with 4x DB9 Cutout |
| MEC-COM-M212-DB9/UB0303 | Mini-PCIe Module with 2x RS-232 Ports, 1x Standard DB9 Cable / 2x Universal Bracket each with 1x DB9 Cutout |
| MEC-USB-M102-30/UB0314 | Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x30 cm cable, 1x Universal Bracket with 2x USB Cutout |
| MEC-LAN-M102-30/UB0311 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout |
| FAN-EX101 | External Fan with 4pin Terminal Block Plug, Mounting Bracket, Support smart fan |
| FAN-UB100 | Exhaling fan with 4pin Connector, Universal Bracket |
| FAN-UB101 | Inhaling fan with 4pin Connector, Universal Bracket |
| PAH01 | Power Adapter Holder for GST120A24 |
| PAH02 | Power Adapter Holder for GST220A24 |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W, with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI |
| RC-E8E8-R10 | Riser Card with 2x PCIex8 Slots |
| RC-E16E1-01 | Riser Card with 1x PCIex16, 1x PCIex1 slots, and auxiliary power connector, supports add-on cards up to 75W. |
| RC-E16E1-02 | Riser Card with 1x PCIex16, 1x PCIex1 slots, and auxiliary power connector, supports add-on cards up to 130W. |
| RC-E16PI-01 | Riser Card with 1x PCIex16 and 1x PCI Slots (PCIe x16 Slot Supports Single Deck Add-on Card) |
| RC-PIPI-01 | Riser Card with 2x PCI Slots |
