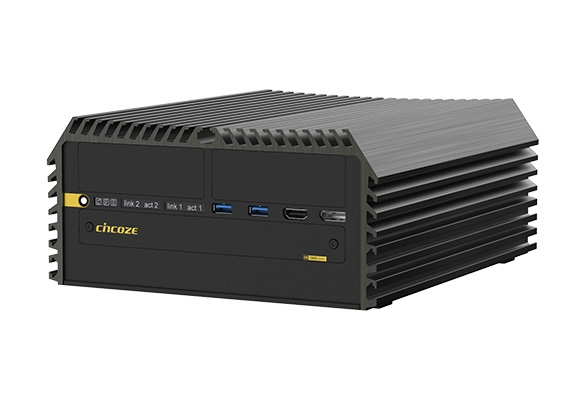

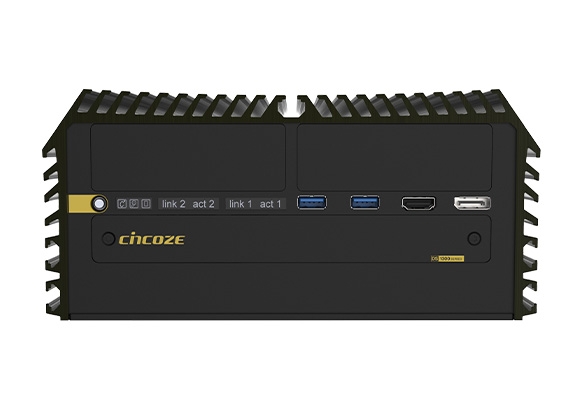

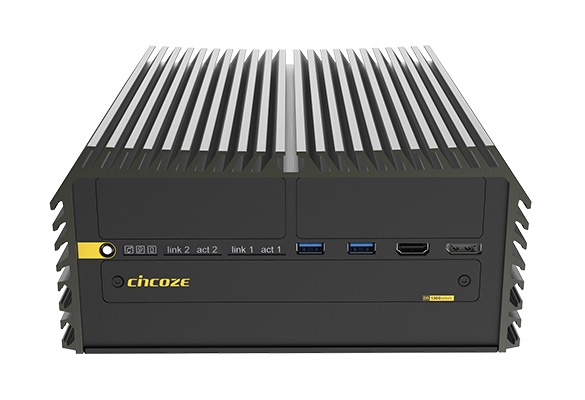

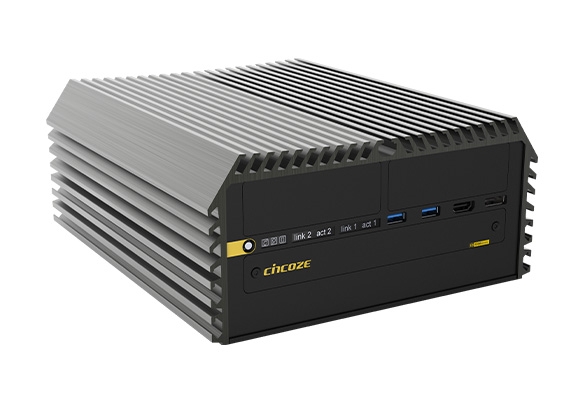

DS-1301
第十代Intel® Xeon/Core™系列处理器，高性能，可扩展和模块化的强固型嵌入式电脑，支持1x PCI/PCIe扩展
产品特点
- 10核第十代Intel® Xeon®和Core™ i9/i7/i5/i3 CPU (max 80w TDP)
- 2x GbE网口和可选的2x 10GbE网口
- 2x 2.5" SATA存储，3x mSATA插槽，1x M.2 M key的NVMe SSD
- 支持1x PCI/PCIe扩展
- 3个全尺寸Mini PCIe插槽，2个SIM卡插槽
- 可选的CMI模块用于I/O扩展
- 可选的CFM模块用于IGN（智能点火控制）和PoE（网口供电）
- 宽工作温度-40°C至70°C
- 军规标准 (MIL-STD-810G)认证，轨道交通EN50155 (EN 50121-3-2 only)认证
产品介绍
DS-1301是一款功能强大的嵌入式电脑，具有较高的性能，具备多种功能和丰富的工业I/O，最重要的是还可扩展一个PCI/PCIe。搭配Cincoze的CMI, CFM, MEC扩展模块，可定制额外的I/O或其他功能，简单轻松就可满足不同的应用需求。DS-1301符合工业环境的要求，并通过了多项行业标准认证，为工厂自动化、工业自动化和车载应用提供稳定可靠的性能。
10 核心,
高达 80w CPU
——
DS-1300系列采用工作站级的第10代Intel® Xeon®或Core™ i9/i7/i5/i3处理器，高达10核心的卓越处理性能，并支持高达80w TDP的Xeon® CPU，可支持64GB且DDR4 2933/ 2666 MHz的高速内存，这些高速处理能力都集成在强固型无风扇电脑DS-1300系列中。
更强 & 更快
增加生产力
——
DS-1300系列的第10代CPU在多任务处理能力上，比第9代CPU提升了31%*。DDR4 2933MHz的内存速度进一步提升了10%**，此处理器平台为整合智能设备和应用提供了多工作负载所需的性能。
* 提升31%：以第10代i9-10900E（65W）对比 第9代i7-9700（65W）
** 提升10%：以DS-1300系列（2933 MHz）对比 DS-1200系列（2666 MHz）
工业 I/O 接口
模块化扩展
——

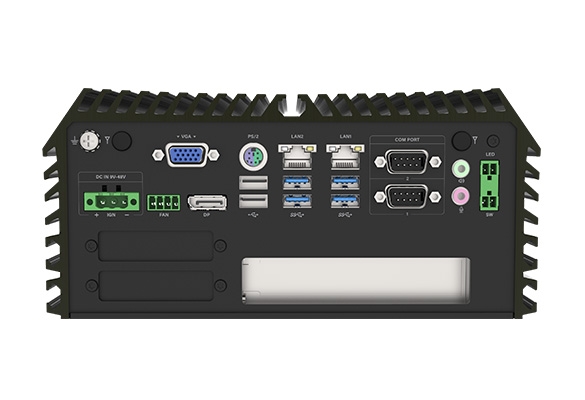

DS-1300系列提供丰富的工业I / O接口，包括2x GbE LAN, 6x USB 3.2, 2x USB 2.0, 2x RS232/422/485, 2x 2.5" SATA, 3x mSATA, 1x M.2 key M for NVMe SSD, 2x SIM卡插槽, 3 x全尺寸Mini-PCIe和三个独立显示接口(DisplayPort, HDMI, VGA)。还可通过Cincoze的CMI/CFM模块进行模块化扩展，增加额外的I/O或其他功能，如高速10GbE万兆网口、PoE（网口供电）和IGN（车载智能点火控制）功能。
PCI/PCIe 接口
可附加扩展卡
——
DS-1301支持一个PCI/PCIe扩展，支持扩展卡的最大长度为111 mm x 235 mm。灵活弹性的PCI/PCIe扩展，可外接市售的各类高速I/O卡、GPU显卡、影像撷取卡、数据采集卡、运动控制卡等特定应用。
可调式固定架
——
PCI/PCIe扩展槽中含有一个可调节的固定架，用于固定PCI/PCIe扩展卡，透过两段式的精密调整功能，紧密调整并加强锁固，在高震动环境下可提供牢固的支撑。
Patent No. I773359强固可靠性
抵抗严苛的环境
——
DS-1300系列无风扇和无线材的工业级设计可承受苛刻的环境，其独特的散热设计，支持宽温工作范围（-40~70°C），并通过了严格的行业标准，包括美军设备检验标准 (MIL-STD-810G)认证，和轨道交通EN50155 (EN 50121-3-2 only)认证。
视频
相关报导
![[ 媒体评测 ] Cincoze DS-1300 Industrial PC Review: Xeon-Powered Do-it-All](data/images/202203/1648714900555376643.jpg)
![[ 媒体评测 ] DS-1302. A very compact high performance expandable and modular rugged embedded computer](data/images/202111/1636513159784656547.jpg)
详细规格
| Model Name | DS-1301 | |
|---|---|---|
| System | Processor | IIntel® Xeon® Series Processor ( 80W / 35W ): • Intel® Xeon® W-1270E 8 Cores Up to 4.8 GHz, TDP 80W • Intel® Xeon® W-1250E 6 Cores Up to 4.7 GHz, TDP 80W • Intel® Xeon® W-1290TE 10 Cores Up to 4.5 GHz, TDP 35W • Intel® Xeon® W-1270TE 8 Cores Up to 4.4 GHz, TDP 35W • Intel® Xeon® W-1250TE 6 Cores Up to 3.8 GHz, TDP 35W Intel® Core® Series Processor ( 65W / 35W ): • Intel® Core™ i9-10900E 10 Cores Up to 4.7 GHz, TDP 65W • Intel® Core™ i7-10700E 8 Cores Up to 4.5 GHz, TDP 65W • Intel® Core™ i5-10500E 6 Cores Up to 4.2 GHz, TDP 65W • Intel® Core™ i3-10100E 4 Cores Up to 3.8 GHz, TDP 65W • Intel® Core™ i9-10900TE 10 Cores Up to 4.5 GHz, TDP 35W • Intel® Core™ i7-10700TE 8 Cores Up to 4.5 GHz, TDP 35W • Intel® Core™ i5-10500TE 6 Cores Up to 3.7 GHz, TDP 35W • Intel® Core™ i3-10100TE 4 Cores Up to 3.6 GHz, TDP 35W |
| Chipset | Intel® W480E Chipset | |
| Memory | 2x DDR4 2933/2666/2400 SO-DIMM Socket * Xeon / i9 / i7 Processor Supports Up to 2933MHz * i5 / i3 Processor Supports Up to 2666 MHz Supports Un-buffered and Non-ECC Type Up to 64GB | |
| BIOS | AMI BIOS | |
| Graphics | Graphics Engine | Integrated Intel® UHD-630 Graphics |
| Maximum Display Output | Supports Triple Independent Display | |
| HDMI | 1 x HDMI Connector (4096 x 2160@30Hz) | |
| DP | 2x DisplayPort Connector (4096 x 2304 @ 60Hz, According to CPU Specifications) * Verified maximum resolution: 3840x2160 | |
| VGA | 1 x VGA Connector (1920 x 1200 @60Hz) | |
| Audio | Audio Codec | Realtek® ALC888, High Definition Audio |
| Line-out | 1 x Line-out, Phone Jack 3.5mm | |
| Mic-in | 1 x Mic-in, Phone Jack 3.5mm | |
| I/O | LAN | • 2 x GbE LAN, RJ45 - GbE1: Intel® I219 - GbE2: Intel® I210 |
| COM | 2 x RS-232/422/485 with Auto Flow Control ( Supports 5V / 12V ), DB9 | |
| USB | • 2 x 10Gbps USB 3.2 Gen2, Type A • 4 x 5Gbps USB 3.2 Gen1, Type A • 2 x 480Mbps USB 2.0, Type A | |
| PS/2 | 1 x PS/2, 6 Pin Mini-DIN Female Connector | |
| Storage | SSD/HDD | • 1x 2.5” Front Accessible SATA HDD/SSD Bay ( SATA 3.0 ) • 1x 2.5” Internal SATA HDD/SSD Bay ( SATA 3.0 ) |
| mSATA | 3x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket ) | |
| M.2 SSD | 1x M.2 Key M Type 2280 Socket, Support PCIe x4 NVMe SSD or SATA SSD ( SATA 3.0 ) | |
| RAID | Support RAID 0/1/5/10 | |
| Expansion | PCI Express | • 1 x PCI/PCIe Expansion Slot with Optional Riser Card * Supports maximum dimensions of add-on card (H x L): 111 x 235 mm |
| Mini PCI Express | 3 x Full-size Mini-PCIe Socket | |
| SIM Socket | 2 x SIM Socket | |
| CMI (Combined Multiple I/O) Interface | • 2 x High Speed CMI Interface for optional CMI Module Expansion • 2 x Low Speed CMI Interface for optional CMI Module Expansion | |
| CFM (Control Function Module) Interface | 1 x CFM IGN Interface for optional CFM-IGN Module Expansion | |
| Other Function | External FAN Connector | 1 x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS) |
| Power Ignition Sensing | Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module) | |
| Clear CMOS Switch | 1 x Clear CMOS Switch | |
| Reset Button | 1 x Reset Button | |
| Instant Reboot | Support 0.2sec Instant Reboot Technology | |
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset | |
| Power | Power Button | 1 x ATX Power On/Off Button |
| Power Mode Switch | 1 x AT/ATX Mode Switch | |
| Power Input | 9 - 48VDC, 3-pin Terminal Block | |
| Remote Power On/Off | 1 x Remote Power On/Off, 2-pin Terminal Block | |
| Remote Power LED | 1 x Remote Power LED, 2-pin Terminal Block | |
| Total Power Budget | 180W | |
| Physical | Dimension ( W x D x H ) | 227 x 261 x 108 mm |
| Weight Information | 5.04 KG | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | |
| Mounting | Wall Mount | |
| Physical Design | • Fanless Design • Cableless Design • Jumper-less Design • Unibody Design | |
| Reliability & Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | 15A | |
| CMOS Battery Backup | SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| MTBF | • 371,393 Hours - Database: Telcordia SR-332 Issue 3, Method 1, Case 3 | |
| Operating System | Windows | Windows® 10 |
| Linux | Supports by project | |
| Environment | Operating Temperature | • 35W TDP Processor: -40°C to 70°C * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) |
| Storage Temperature | -40°C to 85°C | |
| Relative Humidity | 95%RH @ 70°C (non-Condensing) | |
| Ingress Protection | IP30 Compliant * According to IEC60529 | |
| Shock | MIL-STD-810G | |
| Vibration | MIL-STD-810G | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN 50155 (EN 50121-3-2 Only) | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 50121-3-2 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
| Safety | IEC/EN 62368-1 | |
订购信息
| Model No. | Product Description |
|---|---|
| DS-1301-R10 | 10th Generation Intel Xeon/Core Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer with 1x PCI/PCIe Expansion Slot |
| √ DS-1301 Embedded System x1 | √ Heatsink Pack x1 |
| √ Wall Mount Kit x1 | √ Screw Pack x1 |
| √ Remote Function Terminal Block Connector x 2 | √ Power Terminal Block Connector x1 |
| √ Fan Terminal Block Connector x 1 |
| Model No. | Description |
|---|---|
| CMI-LAN01-R12/UB1012 | CMI Module with 4x Intel I210 GbE LAN, RJ45 Port / 1x Universal Bracket with 4x RJ45 Cutout |
| CMI-M12LAN01-R12/UB1010 | CMI Module with M12 Connector, 4x Intel GbE LAN / 1x Universal Bracket with 4x M12 Cutout |
| CMI-XM12LAN01-R10/UB1030-R10 | CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports / Universal Bracket with 4x M12 X-Coded Cutout |
| CMI-10GLAN03-R10/UB1028 | CMI Module with 2x Intel X550 10GbE LAN, RJ45 Port / 1x Universal Bracket with 2x RJ45 Cutout |
| CMI-COM02/UB1004 | CMI Module with 4x RS232/422/485 Ports (Support 5V/12V) / 1x Universal Bracket with 4x DB9 Cutout |
| CMI-ICOM01/UB1004 | CMI Module with 4x Isolated RS232 Ports (Support 5V/12V) / 1x Universal Bracket with 4x DB9 Cutout |
| CMI-DIO02/UB1018 | CMI Module with 16DIO (8in 8out) / 1x Universal Bracket with DIO Cutout |
| MEC-COM-M212-DB9/UB0303 | Mini-PCIe Module with 2x RS-232 Ports, 1x Standard DB9 Cable / 2x Universal Bracket each with 1x DB9 Cutout |
| MEC-USB-M102-30/UB0314 | Mini-PCIe Module with 2x USB 3.2 Gen1 Ports, 1x30 cm cable, 1x Universal Bracket with 2x USB Cutout |
| MEC-LAN-M102-30/UB0311 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout |
| Model No. | Description |
|---|---|
| CFM-PoE03 | CFM Module with PoE Function, Individual Port 25.5W |
| CFM-IGN101 | CFM Module with Power Ignition Sensing Function, 12V/24V Selectable |
| Model No. | Description |
|---|---|
| RC-E16-01 | Riser Card with 1 x PCIe x 16 Slot |
| RC-PI-01 | Riser Card with 1 x PCI Slot |
| Model No. | Description |
|---|---|
| FAN-EX101 | External Fan with 4pin Terminal Block Plug and Mounting Bracket, Support Smart Fan |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI |
